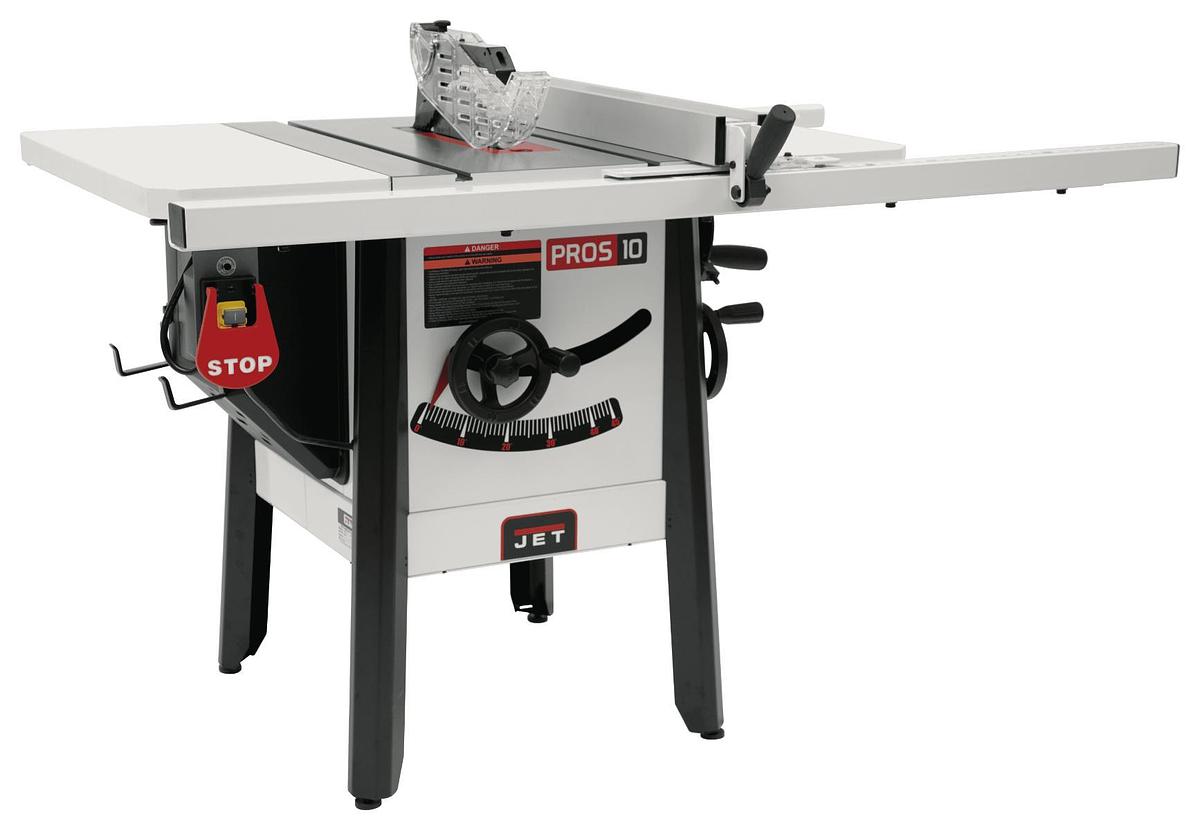

The JPS-10 1.75 HP 115V 30" Proshop Tablesaw with Steel wings
Description
Table Saw 30", Steel Wings, 1.75HP, 115V
Specifications
| Manufacturer | Jet Tools |
| Model | JPS-10 ProShop Steel |
| Condition | New |
| Stock Number | JT9-725004K |
| Arbor Speed (RPM) | 4000 |
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Depth of Cut (In.) | 3-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Left of Blade (In.) | 13-1/2 |
| Maximum Rip Right of Blade (In.) | 30 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | T-Slot with Stops |
| Motor Amps | 14.8 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Contractor |
| Table Height from Floor (In.) | 34-3/4 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 8.81 |
| Table Size (L x W) (In.) | 20 x 27 |
| Table Type | Cast Iron |
| Warranty | 5 Year |
| Gross Weight | 261.5 |
| Net weight | 235.7 |
