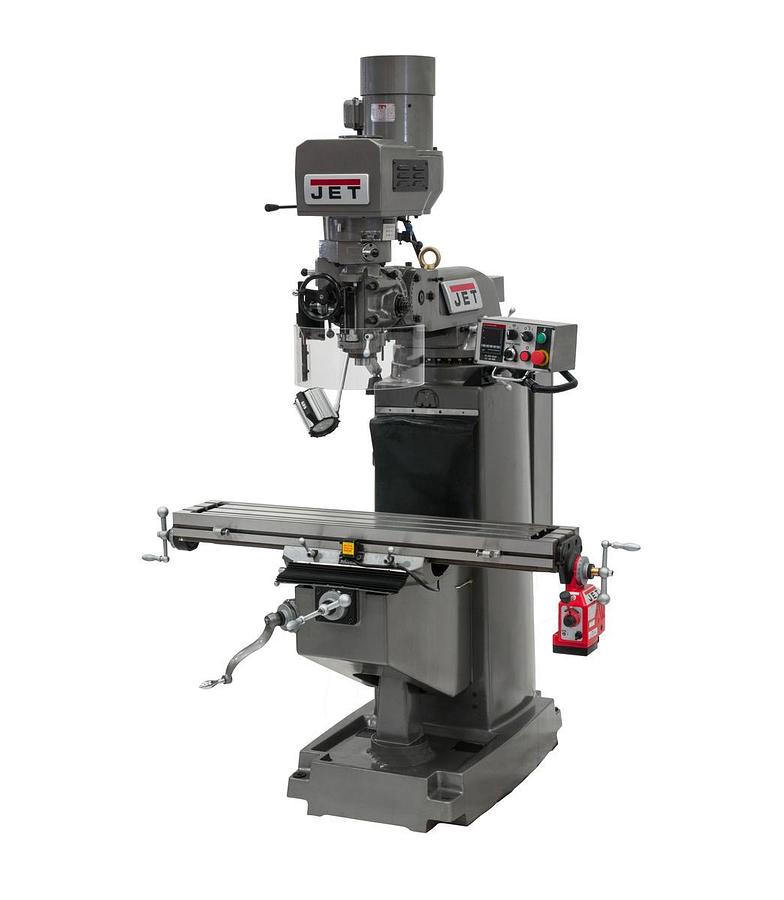

JTM-1050EVS2/230 Mill With 3-Axis Acu-Rite MilPwr G2 CNC Controller
Description
3-axis CNC Mill - ACU-Rite G-2 Millpwr CNC
Specifications
| Manufacturer | Jet Tools |
| Model | JTM-1050EVS |
| Condition | New |
| Stock Number | JT9-690676 |
| CNC Package | ACU-RITE MILLPWR® G2 |
| Collet Capacity | 1/8 - 7/8 |
| Column Width (In.) | 20 |
| Distance Spindle to Column (Max.) (In.) | 26-3/4 |
| Inverter Type | Delta, B |
| Max Distance Spindle to Table (In.) | 20-3/4 |
| Motor (HP) | 3 HP, 230V, 3Ph |
| Number of Axis | 3 |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 87 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Saddle Width (In.) | 11-1/2 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 14-3/4 |
| Table Longitudinal Travel (In.) | 35-1/3 |
| Table Longitudinal Travel With Powerfeed (In.) | 29-7/8 |
| Table Size (L x W) (In.) | 10 x 50 |
| Travel of Knee (In.) | 16-1/8 |
| Travel of Ram (In.) | 15-7/8 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 840 |
| Gross Weight | 3100.0 |
| Net weight | 3100.0 |
