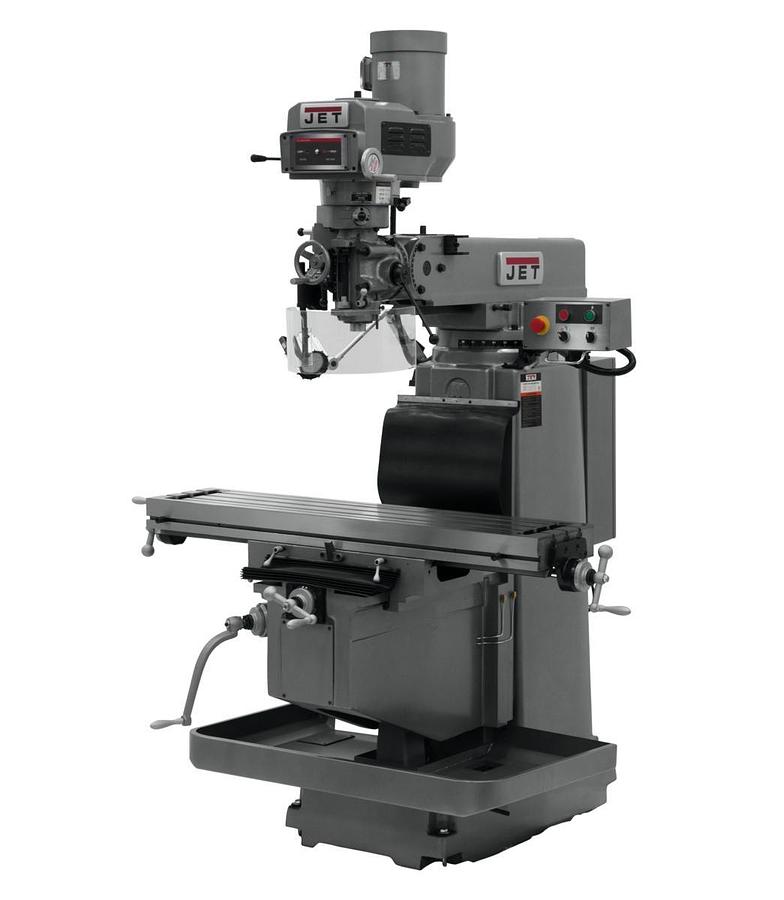

JTM-1254RVS with 3-Axis ACU-RITE G-2 MILLPOWER CNC
Description
3-axis CNC Mill - ACU-Rite G-2 Millpwr CNC
Specifications
| Manufacturer | Jet Tools |
| Model | JTM-1254VS |
| Condition | New |
| Stock Number | JT9-691944 |
| Column Width (In.) | 14-1/4 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Max Distance Spindle to Table (In.) | 23 |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 26.75 x 16.625 x 58.625 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 4-1/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Saddle Width (In.) | 25-5/8 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/3 |
| Table Longitudinal Travel (In.) | 33-7/8 |
| Table Size (L x W) (In.) | 12 x 54 |
| Travel of Knee (In.) | 19-1/4 |
| Travel of Ram (In.) | 25 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 925 |
| Gross Weight | 3696.0 |
| Net weight | 3260.0 |
