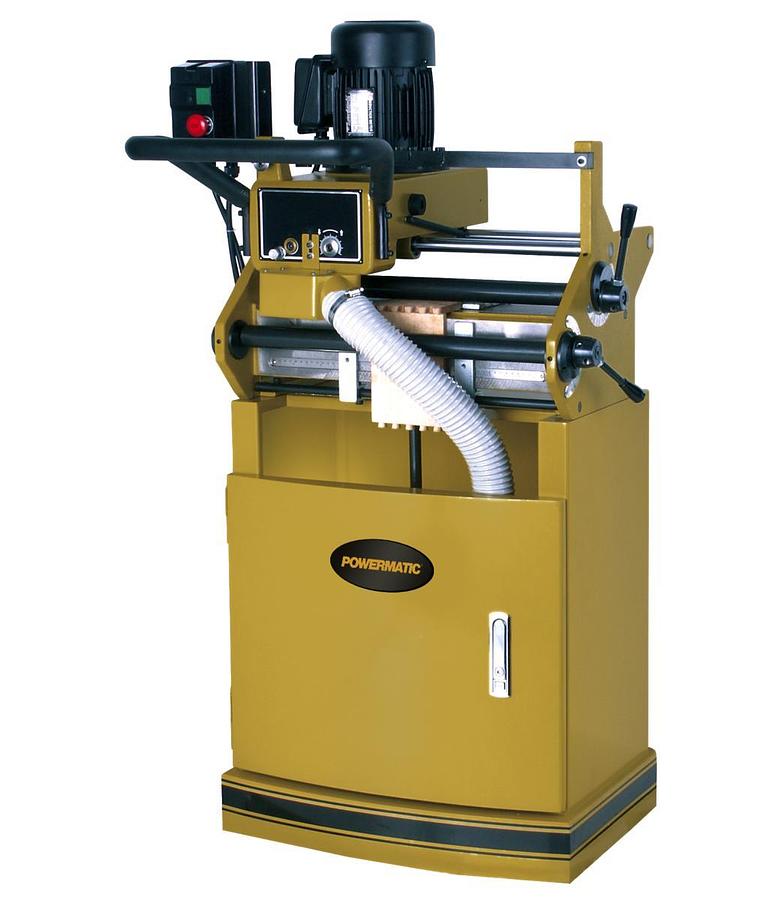

DT45 Dovetailer, 1HP 1PH 115/230V

or
Call (954)444-4004

Description

The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.


  • Cast iron and steel construction for added stability and durability
  • Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
  • Eccentric spindle collet for resharpened cutters
  • Extra large soft grip handle provides positive control and comfort
  • Four dovetail center lines at 1", 1-1/2", 2", and 2-1/2" create a custom appearance
  • Manual clamping will keep boards firm
  • Material stops provide convenient positioning of the workpiece
  • Spring loaded carriage makes for smooth, effortless dovetail cutting
  • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aid in guiding the carriage

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelDT45
    ConditionNew
    Stock NumberPM9-1791304
    Dust Collection Minimum CFM Required (CFM)500
    Maximum Dovetail Height (In.)3/4
    Maximum Front Thickness (In.)1-3/4
    Maximum Side Thickness (In.)1-3/16
    Minimum Dovetail Height (In.)3/16
    Minimum Front Thickness (In.)9/32
    Minimum Side Thickness (In.)9/32
    Motor Phase1
    Motor Power (HP)1
    Motor Voltage (V.)115/230
    Number of Dovetail Center Lines4
    Number of Spindles1
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Style (Type)Closed Stand
    Warranty5 Year
    Gross Weight380.0
    Net weight320.0
