DT65 Dovetailer, 1HP 1PH 230V

or
Call (954)444-4004

Description

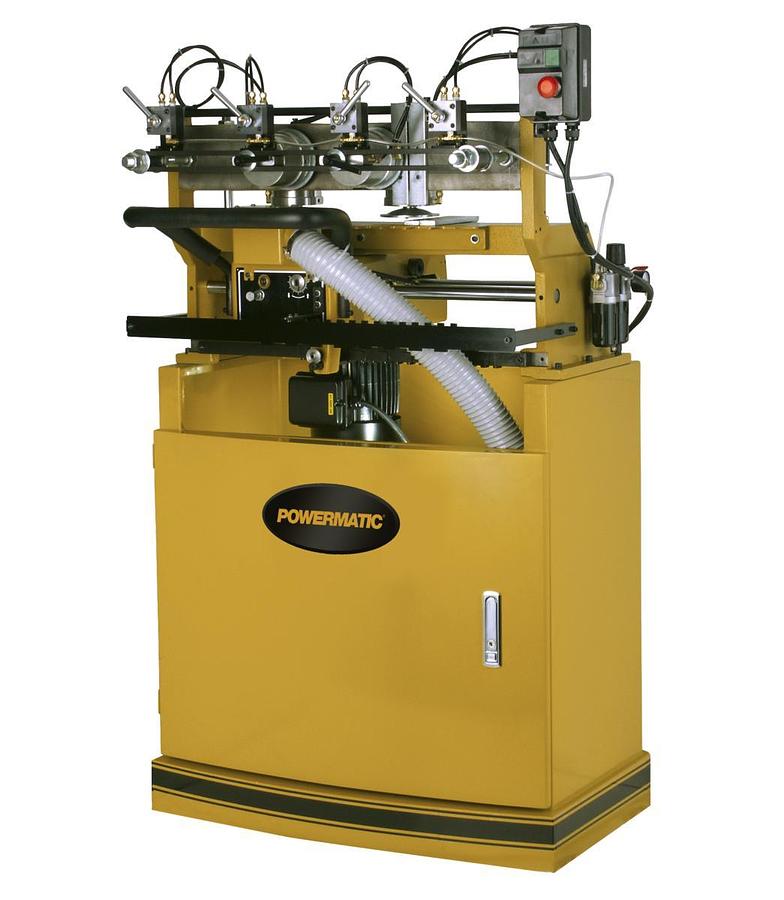

The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.


  • Cast iron and steel construction for added stability and durability
  • Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
  • Eccentric spindle collet for resharpened cutters
  • Extra large soft grip handle provides positive control and comfort
  • Four dovetail center lines at 1", 1-1/2", 2", and 2-1/2" create a custom appearance
  • Material stops provide convenient positioning of the workpiece
  • Pneumatic clamping provides quick locking and unlocking of the work piece
  • Spring loaded carriage makes for smooth, effortless dovetail cutting
  • The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aid in guiding the carriage

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelDT65
    ConditionNew
    Stock NumberPM9-1791305
    Dust Collection Minimum CFM Required (CFM)500
    Maximum Dovetail Height (In.)3/4
    Maximum Front Thickness (In.)2-3/8
    Maximum Side Thickness (In.)1-3/16
    Minimum Dovetail Height (In.)3/16
    Minimum Front Thickness (In.)9/32
    Minimum Side Thickness (In.)3/8
    Motor Phase1
    Motor Power (HP)1
    Motor Voltage (V.)230
    Number of Dovetail Center Lines4
    Number of Spindles1
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Style (Type)Pneumatic
    Warranty5 Year
    Gross Weight510.0
    Net weight420.0
