8" Jointer, 2HP 1PH 230V (60C )
Description

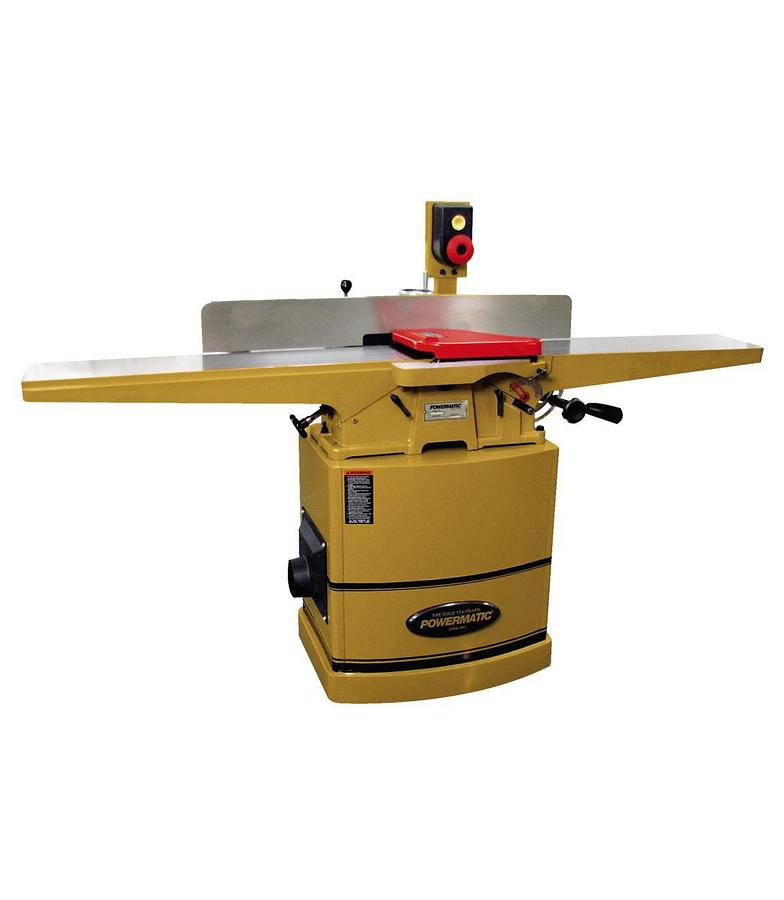

This 8" Jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
Specifications
| Manufacturer | PowermaticC |
| Model | 60C |
| Condition | New |
| Stock Number | PM9-1610084K |
| Warranty | 5 Year |
| Type of Cutterhead | Straight Knife |
| Cutterhead Diameter (In.) | 3 |
| Maximum Cutting Depth (In.) | 1/8" |
| Cuts Per Minute | 21,000 |
| Cutterhead Speed (RPM) | 7000.0000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Fence Tilt (Deg.) | 90 to 45 R |
| Infeed Table Length (In.) | 35-1/4 |
| Number of Knives | 3 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 1 |
| Recommended Circuit Size (Amps.) | 20 |
| Motor Amps | 9 |
| Max.Rabbeting Capacity (In.) | 1/2 |
| Gross Weight | 518.0 |
| Net weight | 490.0 |
| Prop 65 | Cancer and Reproductive Harm |
