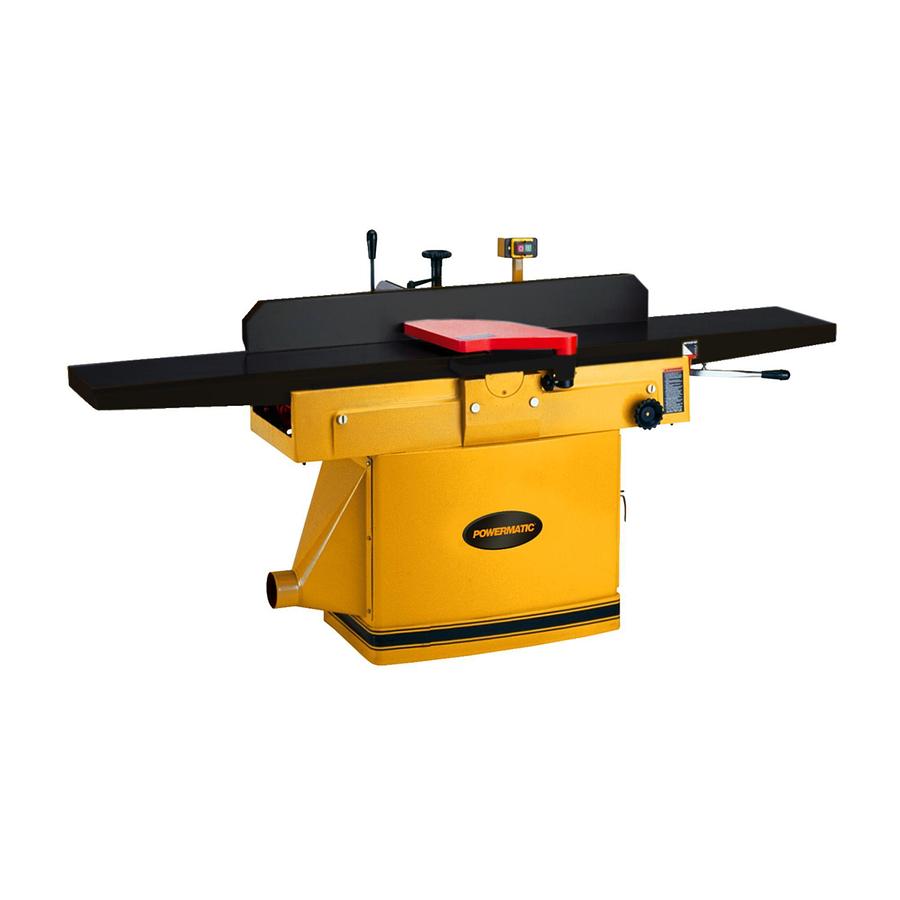

12" Parallelogram Jointer with ArmorGlide, Straight Knife, 1Ph 230V (1285T)

or
Call (954)444-4004

Description

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a straight knife cutterhead.


  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
  • Large 12" x 84" precision-ground cast iron table surface for heavy-duty work
  • Parallelogram design ensures close table-to-cutterhead proximity and fast depth of cut adjustments
  • Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
  • Straight knife cutterhead with three high speed steel knives create a clean cut
  • Table "lips" on both sides of cutterhead aid in noise reduction
  • NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.

    • Show All

    Specifications

    ManufacturerPowermaticC
    Model1285T
    ConditionNew
    Stock NumberPM1-1791241T
    Warranty5 Year
    Type of CutterheadStraight Knife
    Maximum Cutting Depth (In.)1/8"
    Cuts Per Minute15,000
    Cutterhead Speed (RPM)5000.0000
    Cutting Capacity (W x D) (In.)11-3/4 x 3/4
    Dust Collection Minimum CFM Required (CFM)800
    Dust Port Outside Diameter (In.)4
    Number of Knives3
    Motor Power (HP)3
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Motor Phase1
    Recommended Circuit Size (Amps.)30
    Max.Rabbeting Capacity (In.)3/4"
    Gross Weight880.0
    Net weight762.0
    Prop 65Cancer and Reproductive Harm
