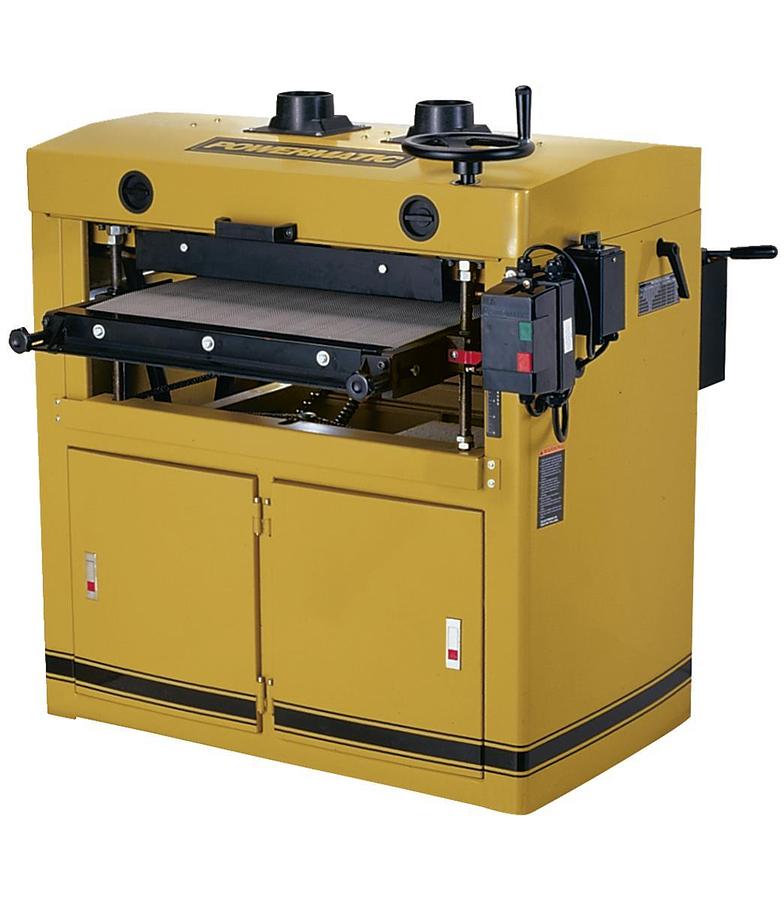

DDS225 Drum Sander, 5HP 1PH 230V

Description

Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.


  • Dual drum head for superior finish
  • Dual dust ports with directional baffles for more efficient dust removal
  • Forward/reverse conveyor belt grips stock evenly
  • Full size cast iron table for solid support
  • Hard durometer rubber coating on steel drums provides flat, smooth finish
  • Independently adjustable rear drum for fine tuning
  • Two-speed gearbox for wide range of sanding projects.
  • Specifications

    ManufacturerPowermaticC
    ModelDDS-225
    ConditionNew
    Stock NumberPM9-1791290
    Conveyor Speed (FPM)8 and 12
    Drum Diameter (In.)6
    Drum Length (In.)25
    Drum Speed (RPM)1,700
    Dust Collection Minimum CFM Required (CFM)600
    Dust Port Outside Diameter (In.)4
    Maximum Board Thickness (In.)5-1/4
    Maximum Board Width (In.)25'
    Minimum Board Length (In.)9
    Minimum Board Thickness (In.)1/32
    Motor Power (HP)5
    Prop 65Cancer and Reproductive Harm
    Recommended Circuit Size (Amps.)40
    Style (Type)Dual Drum
    Warranty5 Year
    Gross Weight840.0
    Net weight730.0
