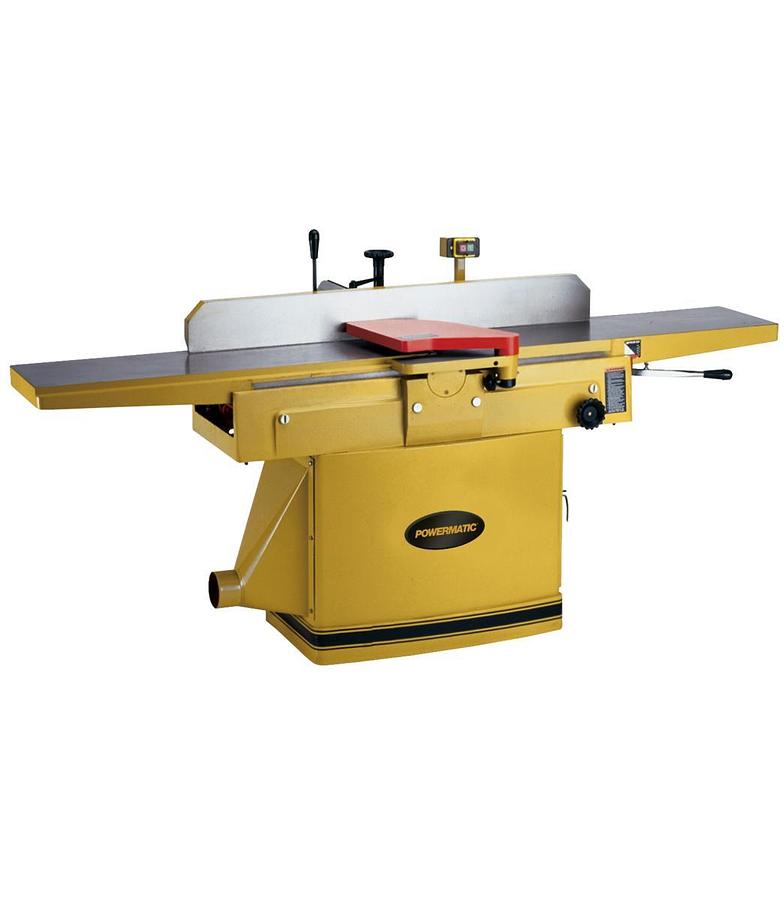

12" Jointer 3HP 230V with helical cutterhead (1285HH)

or
Call (954)444-4004

Description

This 12" Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.


  • Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut
  • Large 12" x 84" precision ground cast iron table surface for heavy-duty work
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
  • Table "lips" on both sides of cutterhead aid in noise reduction
  • NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.

    • Show All

    Specifications

    ManufacturerPowermaticC
    Model1285
    ConditionNew
    Stock NumberPM9-1791308
    Warranty5 Year
    Type of CutterheadHelical Head
    Cutterhead Speed (RPM)5000.0000
    Cutting Capacity (W x D) (In.)11-3/4 x 3/4
    Dust Collection Minimum CFM Required (CFM)800
    Dust Port Outside Diameter (In.)4
    Number of Knives42 four-sided inserts
    Motor Power (HP)3
    Motor Voltage (V.)230/460
    Prewired Voltage (V.)230
    Motor Phase3
    Motor Amps6.5
    Max.Rabbeting Capacity (In.)3/4"
    Gross Weight880.0
    Net weight812.0
    Prop 65Cancer and Reproductive Harm
