Description

At Powermatic, we know our woodworkers’ expectations are high when it comes to their machines. With that in mind, when we engineer a new product, we are continuously working to improve the woodworker’s capabilities while simultaneously enhancing their experience. That is why we are proud to introduce the PM2244 Drum Sander. The PM2244 will exceed your expectations with its world-class design, usability and sophistication.

Belt tracking is designed to reduce the need for manual adjustment

Closed stand with storage for keeping abrasives organized

Drum carriage is designed to provide strength and consistent performance over time

Emergency stop for quick shutoff

Included infeed/outfeed tables provide 37-1/2 inches of support for the workpiece

Integrated casters make it easy to move unit around the shop

Integrated LED Control Panel shows power, belt speed, and DRO

Large, chrome handwheel makes adjusting the drum height smooth and simple

Table parallelism is adjusted with a dial on the outside of the conveyor bed, eliminating adjustments to the entire drum carriage

The feed logic system monitors the load on the drum motor and regulates the speed of the conveyor motor to maintain the highest feed rate without overload

Specifications

Manufacturer	PowermaticC
Model	PM2244
Condition	New
Stock Number	PM9-1792244
Conveyor Speed (FPM)	0 to 10
Drum Bearing Diameter (In.)	5
Drum Diameter (In.)	5
Drum Length (In.)	22
Drum Speed (RPM)	1720
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	4
Maximum Board Thickness (In.)	4
Maximum Board Width (In.)	22"
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Motor Amps	14
Motor Power (HP)	1-3/4
Number of Sanding Drums	1
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20
Style (Type)	Drum Sander
Warranty	5 Year
Gross Weight	418.0
Net weight	328.0

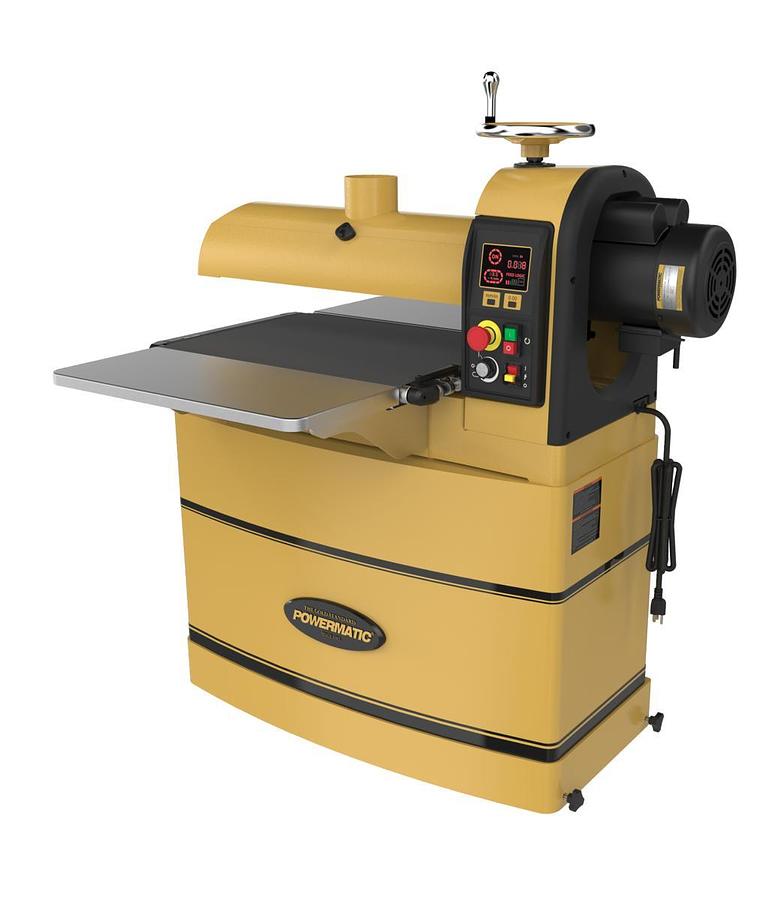

PM2244 Drum Sander, 1-3/4HP, 115V
