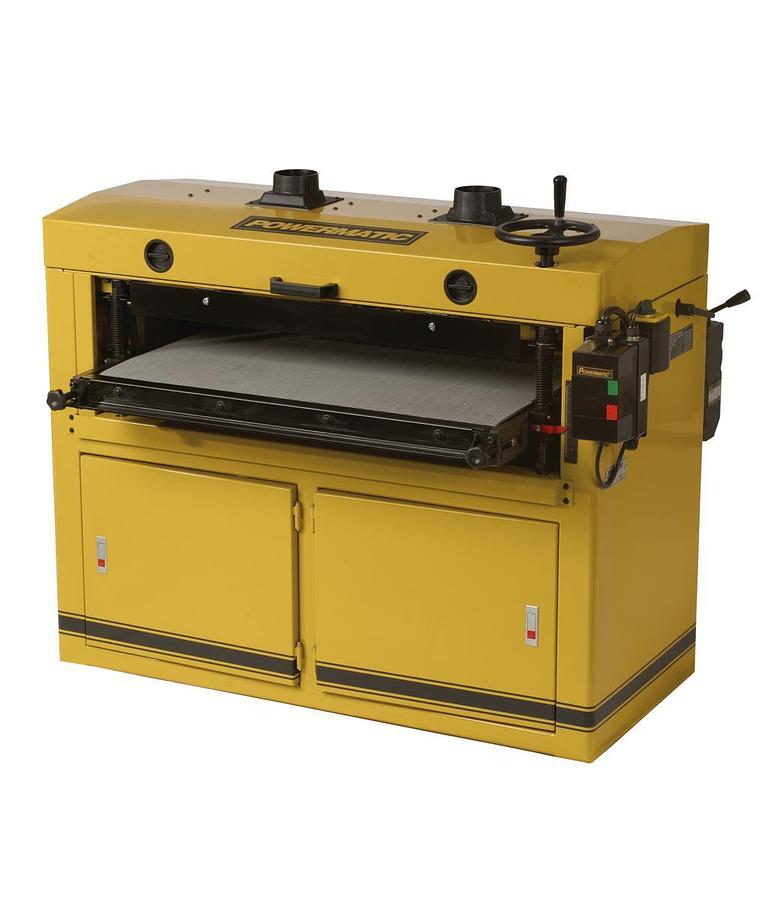

DDS-237 Drum Sander, 7.5HP 1PH 230V
Description
The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
Specifications
| Manufacturer | PowermaticC |
| Model | DDS-237 |
| Condition | New |
| Stock Number | PM9-1791320 |
| Conveyor Speed (FPM) | 8 and 12 |
| Drum Diameter (In.) | 6 |
| Drum Length (In.) | 37 |
| Drum Speed (RPM) | 1,700 |
| Dust Collection Minimum CFM Required (CFM) | 1,200 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Board Thickness (In.) | 5-1/4 |
| Maximum Board Width (In.) | 37" |
| Minimum Board Length (In.) | 9 |
| Minimum Board Thickness (In.) | 1/32 |
| Motor Power (HP) | 7-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Dual Drum |
| Warranty | 5 Year |
| Gross Weight | 1142.0 |
| Net weight | 962.0 |
