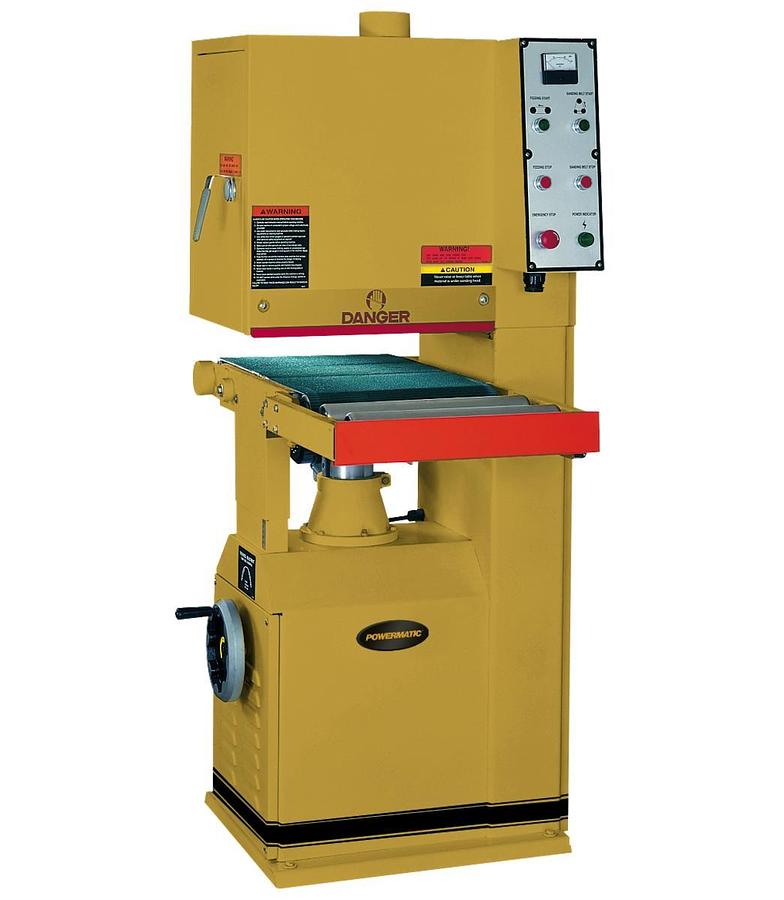

1632 Open End Belt Sander, 5HP 1PH 230V
Description
The 16" Open-End Belt Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.
Specifications
| Manufacturer | PowermaticC |
| Model | 1632 |
| Condition | New |
| Stock Number | PM9-1791250 |
| Air Required | 4 at 5 atm |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Feed Motor Power (HP) | 1/4 |
| Feed Rate (FPM) | 15/32.5 |
| Maximum Board Thickness (In.) | 5 |
| Maximum Board Width (In.) | 16 |
| Minimum Board Length (In.) | 13-3/4 |
| Motor Phase | 1 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 40 |
| Sanding Belt Speed (FPM) | 2,200 |
| Style (Type) | Wide Belt Sander |
| Warranty | 5 Year |
| Gross Weight | 1106.0 |
| Net weight | 996.0 |
