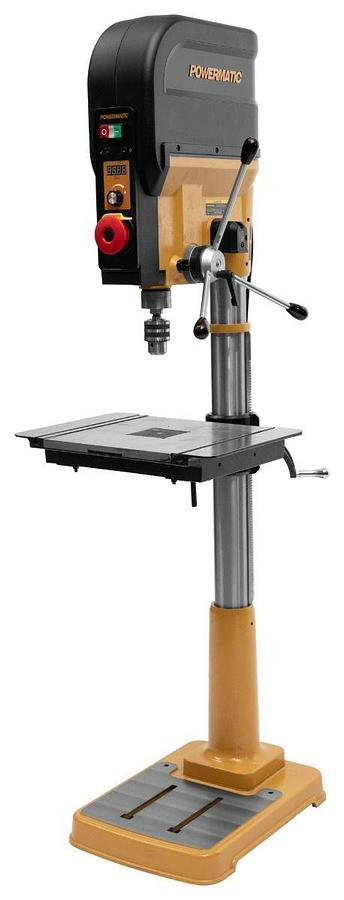

PM2820EVS Drill Press, 1HP 1PH 120V

or
Call (954)444-4004

Description

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press.
The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45 degree rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy.
Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability.Integrated LED light reduces shadows for project visibility.


  • Designed for a range of materials and applications
  • For unbeatable accuracy, the laser cross hairs provide precise tool point indication.
  • Gear driven power transfers torque consistently and efficiently for a wide range of materials.
  • Handles can be reversed for left or right sided operation.
  • Highly visible digital readout gives users control.
  • Includes Powermatic’s patented integrated depth stop for efficient drilling
  • Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.
  • Standing on an oversized cast base for outstanding stability for the 20 inch swing.
  • The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM.
  • The large cast table adjusts to a range of positions and tilts to a full ninety degree position.

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelPM2820
    ConditionNew
    Stock NumberPM9-1792820
    Base Dimensions (In.)22.7 x 16.33 x 2.75
    Base Size (In.)22-3/4 x 16-3/8 x 2-3/4
    Base Work Table (In.)11.81 x 12.05
    Chuck Distance to Base (In.)41-1/4
    Chuck Distance to Table (In.)19-1/4
    Chuck Size (In.)5/8
    Column Diameter (In.)3-3/8
    Fence Size (L x H) (In.)19-3/4 x 2-5/8
    Motor Amps8
    Motor (HP)1
    Motor PhaseSingle
    Motor Power (HP)1
    Motor Voltage (V.)120
    Number of Spindle Speeds2 Variable
    Overall Dimensions (L x W x H) (In.)24.5 x 20.5 x 71.85
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)2.6
    Spindle Distance to Base (In.)45
    Spindle Distance to Table (Max.) (In.)23
    Spindle Speed (RPM)150 - 3600
    Spindle TaperMT2
    Spindle Travel (In.)6
    Style (Type)Floor
    Swing (In.)20
    Table Size Fully Extended (L x W) (In.)20-1/2 x 15-1/2
    Table Size (L x W) (In.)20-1/2 x 15-1/2
    Table Tilt (Deg.)90 L/R
    Warranty5 Year
    Gross Weight412.6
    Net weight336.6
