DS20 Disc Sander, 2HP 1PH 230V

or
Call (954)444-4004

Description

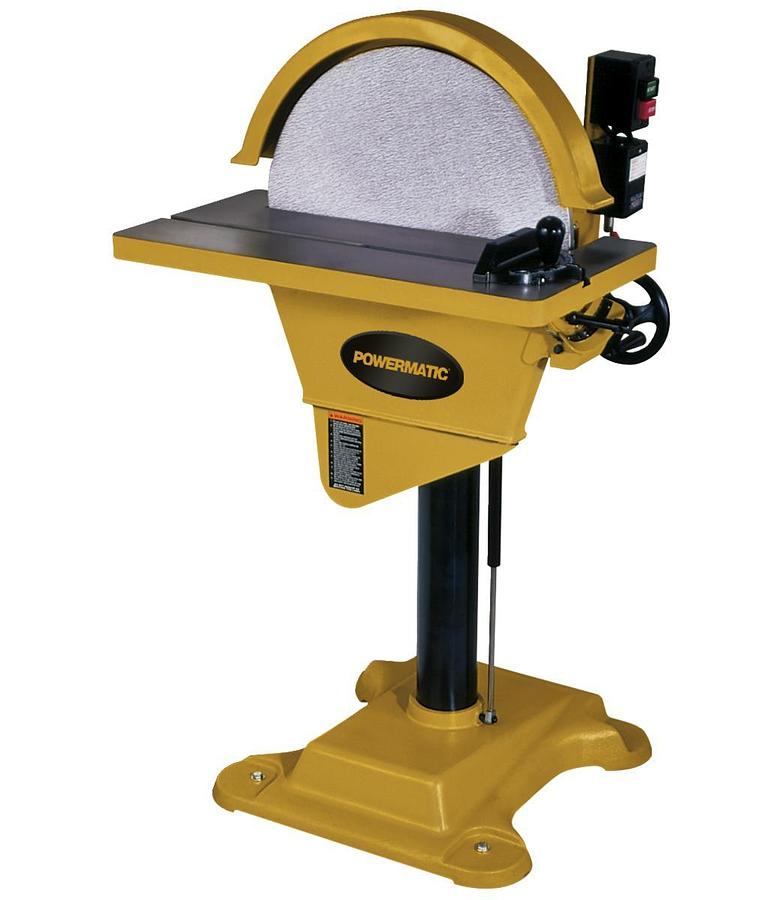

The Powermatic DS20 20" Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.


  • 20" sanding disc for larger capacity
  • Direct drive from motor to disc for maximum efficiency
  • Forward and Reverse Switch
  • Forward and reverse switch for additional usage
  • Miter gauge for angle sanding
  • Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
  • Tilting table allows bevel sanding

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelDS20
    ConditionNew
    Stock NumberPM9-1791276
    Disc Diameter (In.)20.0000
    Dust Collection Minimum CFM Required (CFM)600
    Dust Port Outside Diameter (In.)4
    Motor Amps14
    Motor Phase1
    Motor Power (HP)2
    Prop 65Cancer and Reproductive Harm
    Recommended Circuit Size (Amps.)30
    Style (Type)Disc
    Warranty5 Year
    Gross Weight490.0
    Net weight426.0
