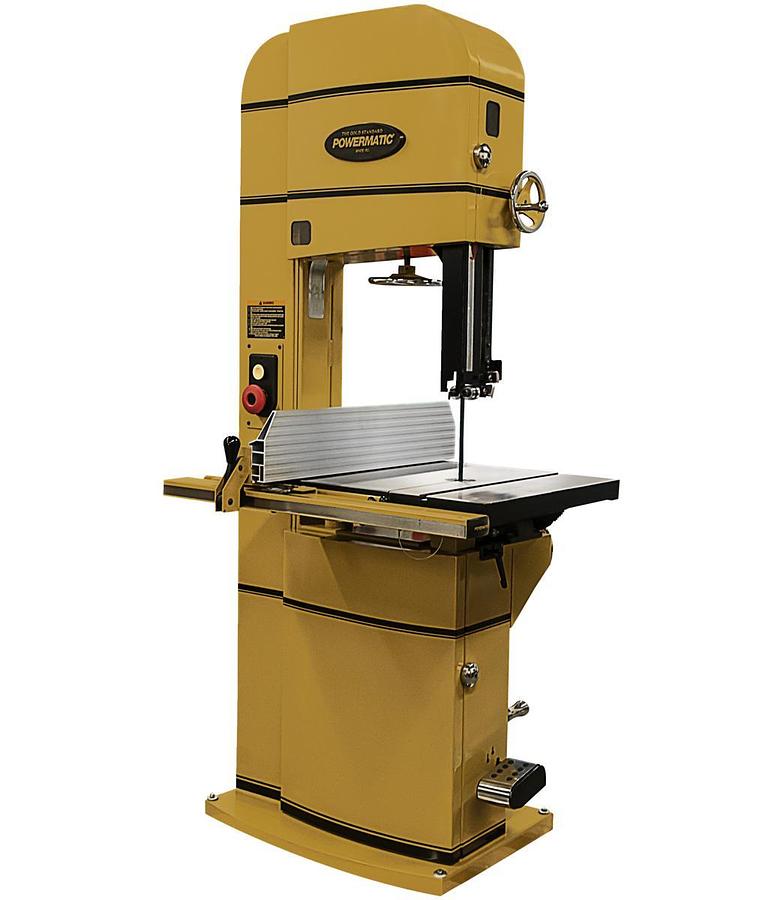

PM1800B, 18" Bandsaw, 5HP 1PH 230V

Description

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.


  • Computer balanced cast iron wheels reduce vibration
  • Computer balanced cast iron wheels reduce vibration and noise
  • Exclusive Powermatic T-square style Accu-FenceĀ® maximizes accuracy and safety
  • Micro-adjustable, virtually tool-less bearing guide system gives close blade control while reducing friction
  • Oversized side plate can be used in the horizontal or vertical position
  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Special grooved thrust bearing stabilizes smaller blades
  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table
  • Specifications

    ManufacturerPowermaticC
    ModelPM1800B
    ConditionNew
    Stock NumberPM9-1791800B
    Warranty5 Year
    Blade Length (In.)160
    Minimum Saw Blade Width (In.)1/8
    Blade Speed (SFPM)2300/4400
    Cutting Capacity Height (In.)18
    Cutting Capacity Width (In.)18.0000
    Dust Port Outside Diameter (In.)4
    Dust Collection Minimum CFM Required (CFM)600
    Table Tilt (Deg.)45 Right / 10 Left
    Motor Power (HP)5
    Motor Phase1
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Recommended Circuit Size (Amps.)30
    Table Height from Floor (In.)38
    Prop 65Cancer and Reproductive Harm
    Style (Type)Floor
    Table T-Slot (In.)3/4
    Net weight840.0
    Gross Weight936.0
