PM2013B, 20" Bandsaw, 5HP 1PH 230V

Description

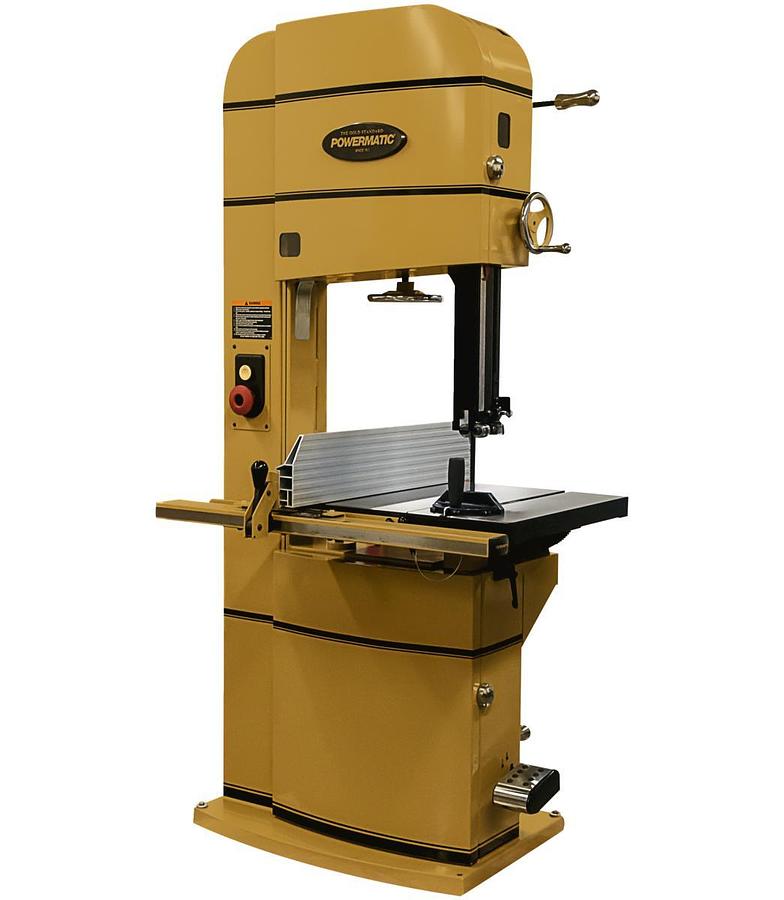

Powermatic PM2013B, 20-Inch Bandsaw, 5 HP, 1PH 230V (1791257B)

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best wood saw machines and tools for the job. When we reimagined our line of 20-inch bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This 20-inch bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.


  • Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
  • Exclusive Powermatic T-square style Accu-FenceĀ® maximizes accuracy and safety
  • Heavy duty upper wheel support and tracking mechanism for smooth operation
  • High end blade guides with tool less adjustment provide stability, increasing cut accuracy
  • Rack and pinion table tilt system allows for easy and accurate adjustments
  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table
  • Specifications

    ManufacturerPowermaticC
    ModelPM2013B
    ConditionNew
    Stock Number1791257B
    Warranty5 Year
    Blade Length (In.)170
    Minimum Saw Blade Width (In.)1/4
    Blade Speed (SFPM)2300/4400
    Cutting Capacity Height (In.)18
    Cutting Capacity Width (In.)20.0000
    Dust Port Outside Diameter (In.)4
    Dust Collection Minimum CFM Required (CFM)600
    Table Tilt (Deg.)45 Right / 10 Left
    Motor Power (HP)5
    Motor Phase1
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Recommended Circuit Size (Amps.)30
    Table Height from Floor (In.)36
    Prop 65Cancer and Reproductive Harm
    Style (Type)Floor
    Table T-Slot (In.)3/4
    Net weight860.0
    Gross Weight959.0
