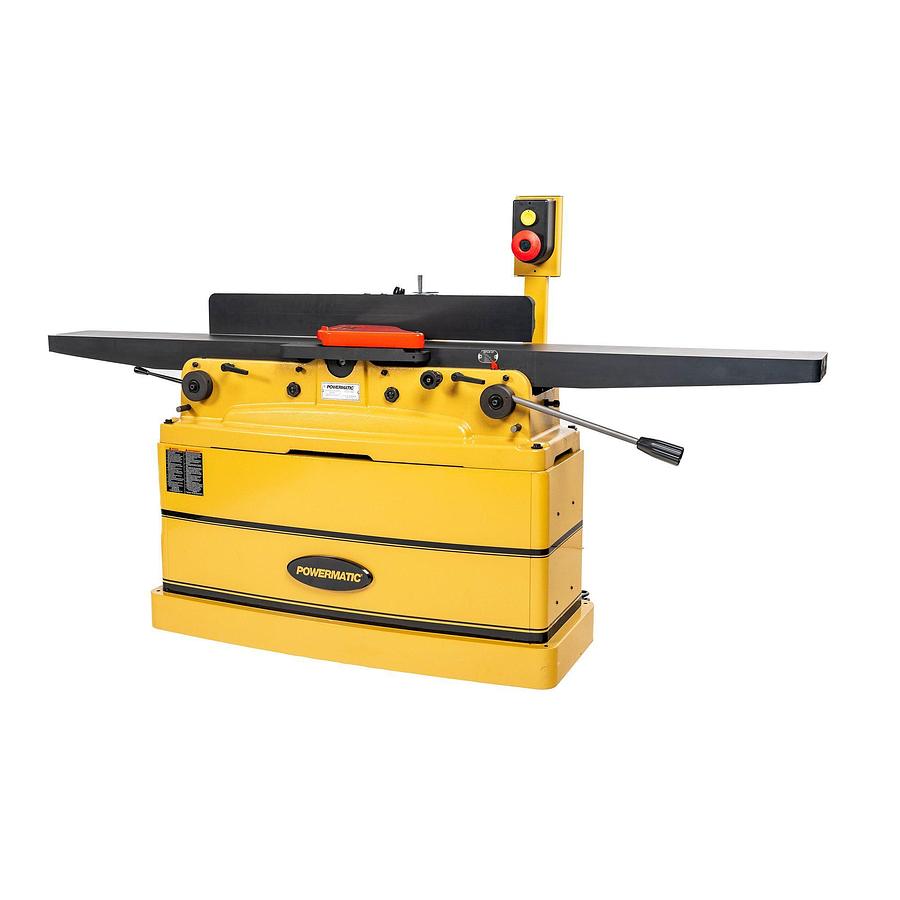

8" Parallelogram Jointer with ArmorGlide, Helical Cutterhead, 1Ph 230V (PJ882HHT)

or
Call (954)444-4004

Description

  • 54 four sided knife inserts
  • 82” bed
  • quieter operation
  • Fence Tilt 45 front/45 back

    • Now featuring ArmorGlide Technology for low-friction, rust-resistant performance, the Powermatic PJ-882HHT 8-Inch Parallelogram Jointer combines advanced features with exceptional value. The helical cutterhead, equipped with 54 four-sided knife inserts, delivers a superior finish and operates much more quietly than traditional cutterheads. These inserts require no adjustment once installed, adding to their convenience.


    With an extended 82-inch bed, this jointer provides enhanced support for larger workpieces. Its innovative single-handwheel design allows easy fence tilting, with positive stops at +/- 45° and 90°. A non-marring insert on the fence prevents surface scratches during adjustments.


    The parallelogram design keeps the table close to the cutterhead for an improved finish and allows for quick depth adjustments. This structure also ensures the table remains perfectly parallel, even after years of heavy use.


    Powered by a fully enclosed 2-HP motor within a heavy-duty steel stand, this jointer delivers ample power and stability for demanding tasks.


  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
  • High-mount switch for operator convenience
  • Large 8" x 82" precision ground cast iron table surface for heavy-duty work
  • 1/8-inch depth limiter control knob gives you quick adjustment ability and safety
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Patented handwheel with worm gear system for precise fence tilting
  • NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”.

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelPJ-882HHT
    ConditionNew
    Stock NumberPM1-1610082T
    Warranty5 Year
    Type of CutterheadHELICAL
    Cutterhead Diameter (In.)3-1/16
    Maximum Cutting Depth (In.)1/8"
    Cuts Per MinuteNot Applicable
    Cutterhead Speed (RPM)7000.0000
    Cutting Capacity (W x D) (In.)8 x 1/2
    Dust Collection Minimum CFM Required (CFM)450
    Dust Port Outside Diameter (In.)4
    Infeed Table Length (In.)44
    Number of Knives54 four-sided inserts
    Motor Power (HP)2
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Motor Phase1
    Recommended Circuit Size (Amps.)20
    Motor Amps9
    Gross Weight744.0
    Net weight610.0
    Prop 65Cancer and Reproductive Harm
