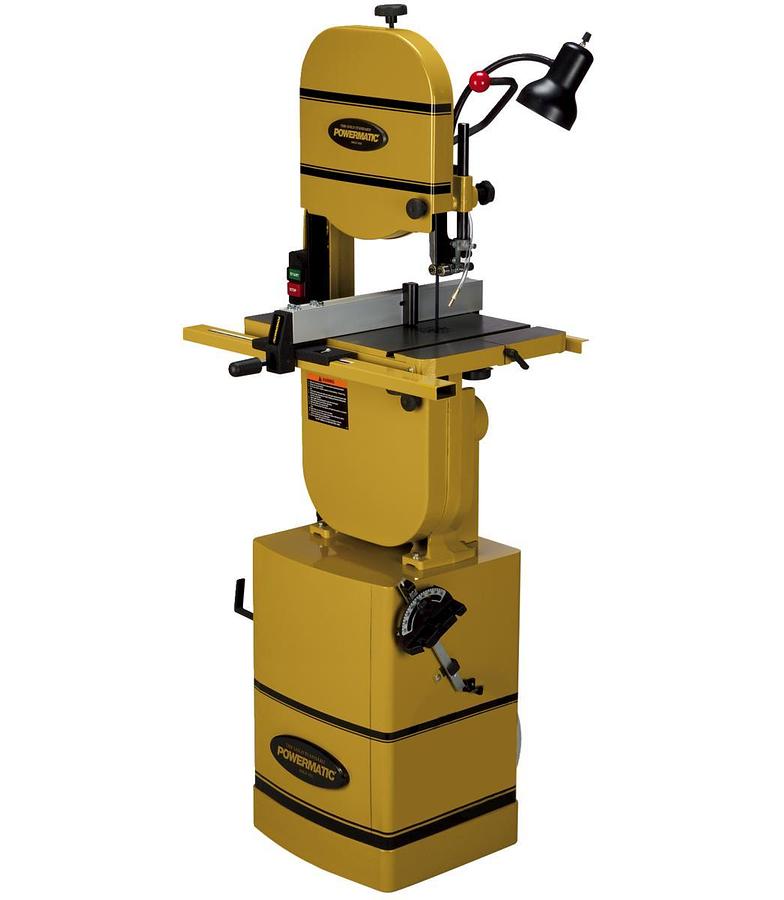

14" Bandsaw with Stand| PWBS-14CS

or
Call (954)444-4004

Description

Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.


  • 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
  • Carter™ quick tension lever speeds blade changes and the detension setting extends blade life during non-use
  • Chip blower ensures a clean, visible cut line
  • Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
  • Easy to read tensioning gauge settings indicated in "blade width" increments
  • Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
  • Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
  • Rigid one-piece welded stand requires no assembly
  • Upper and lower dual ball bearing guides for accurate cuts

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelPWBS-14CS
    ConditionNew
    Stock NumberPM9-1791216K
    Warranty5 Year
    Band Saw Size/Wheel Diameter (In.)14
    Blade Length (In.)93-1/2
    Minimum Saw Blade Width (In.)1/8
    Blade Speed (SFPM)3000
    Dust Port Outside Diameter (In.)4
    Dust Collection Minimum CFM Required (CFM)600
    Table Tilt (Deg.)45 Right / 10 Left
    Motor Power (HP)1.5
    Motor Phase1
    Motor Voltage (V.)115/230
    Prewired Voltage (V.)115
    Recommended Circuit Size (Amps.)30/20
    Table Height from Floor (In.)44
    Prop 65None
    Net weight250.0
    Gross Weight266.0
