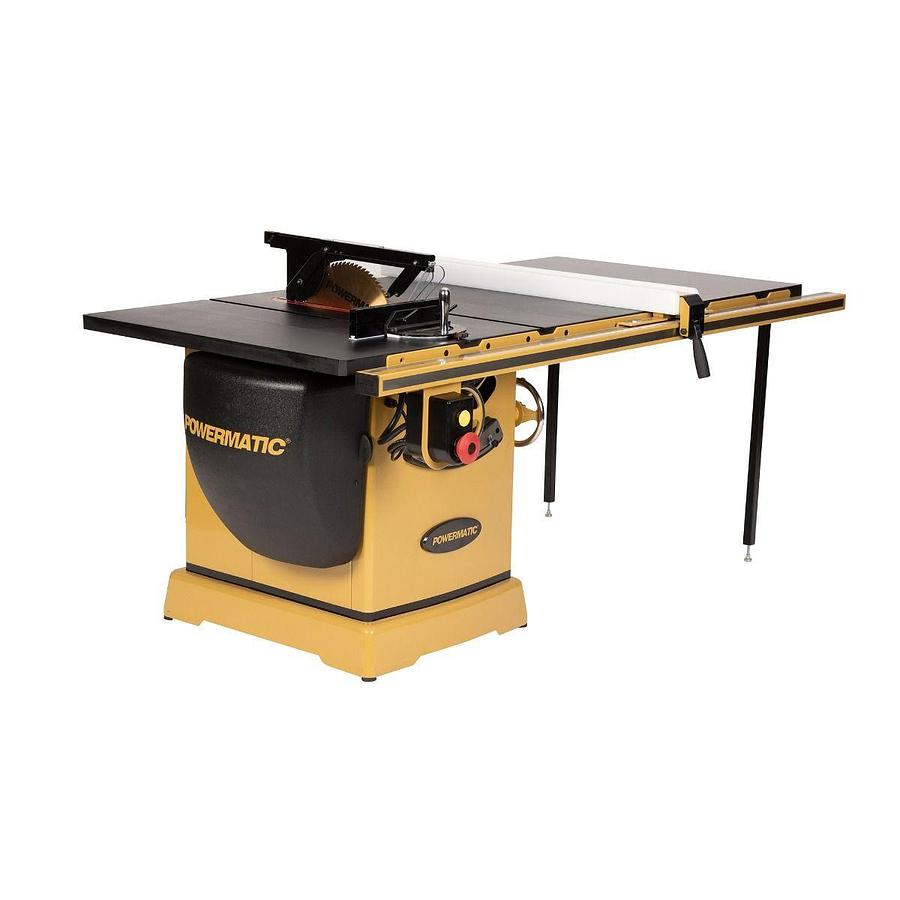

PM3000T, 14-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 7-1/2 HP, 3Ph 230

or
Call (954)444-4004

Description

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both the riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting.
The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat buildup. A redesigned push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Additional features include a sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.


  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
  • Miter guage is built with robust materials with many positive stops for the most commonly used angles.
  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Adjustable miter gauge
  • Arbor lock for rapid blade change
  • Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
  • Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
  • Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
  • One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
  • Poly-V drive belt system delivers efficient, quiet operation

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelPM3000T
    ConditionNew
    Stock NumberPM1-PM375350KT
    Arbor Diameter (In.)1
    Arbor Speed (RPM)4500
    Blade Diameter (In.)14
    Dust Collection Minimum CFM Required (CFM)600
    Dust Port Outside Diameter (In.)4
    Maximum Depth of Cut at 45 Degrees (In.)3-1/2
    Maximum Depth of Cut (In.)3-1/2 or 5-1/8
    Maximum Diameter of Dado (In.)8
    Maximum Rip Left of Blade (In.)14
    Maximum Rip Right of Blade (In.)50
    Maximum Width of Dado (In.)13/16
    Miter Gauge TypeT-Slot with Stops
    Motor Amps6.7
    Motor Phase3
    Motor Power (HP)7.5
    Motor Voltage (V.)230
    Overall Dimensions (L x W x H) (In.)84-11/16 x 46-1/2 x 42-7/8
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Recommended Circuit Size (Amps.)30
    Style (Type)Cabinet
    Table Height from Floor (In.)35-1/4
    Table Size (L x W) (In.)26 x 38
    Table TypeCast Iron
    Warranty5 Year
    Gross Weight830.0
    Net weight737.0
