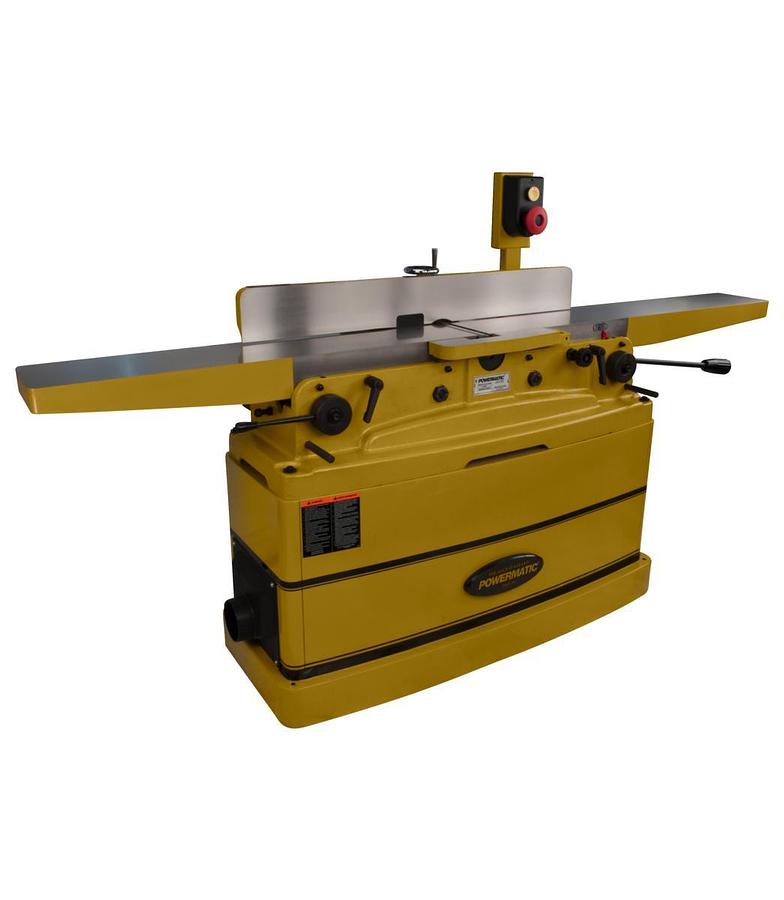

8" Jointer Straight Knife Cutterhead, 2HP 1PH 230V (PJ882)

or
Call (954)444-4004

Description

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra long 82" bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP motor is totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs.


  • High-mount switch for operator convenience
  • Large 8" x 82" precision ground cast iron table surface for heavy-duty work
  • Parallelogram design allows for easy and accurate adjustment of tables
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Patented handwheel with worm gear system for precise fence tilting
  • Straight knife cutterhead with 3 high speed steel knives create a clean cut
  • NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.

    • Show All

    Specifications

    ManufacturerPowermaticC
    ModelPJ882
    ConditionNew
    Stock NumberPM9-1610079
    Warranty5 Year
    Type of CutterheadStraight Knife
    Cutterhead Diameter (In.)3-1/16
    Maximum Cutting Depth (In.)1/8"
    Cuts Per Minute21,000
    Cutterhead Speed (RPM)7000.0000
    Cutting Capacity (W x D) (In.)8 x 1/2
    Dust Collection Minimum CFM Required (CFM)600
    Dust Port Outside Diameter (In.)4
    Infeed Table Length (In.)44
    Number of Knives3
    Motor Power (HP)2
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Motor Phase1
    Recommended Circuit Size (Amps.)20
    Motor Amps9
    Max.Rabbeting Capacity (In.)1/2
    Gross Weight744.0
    Net weight610.0
    Prop 65Cancer and Reproductive Harm
