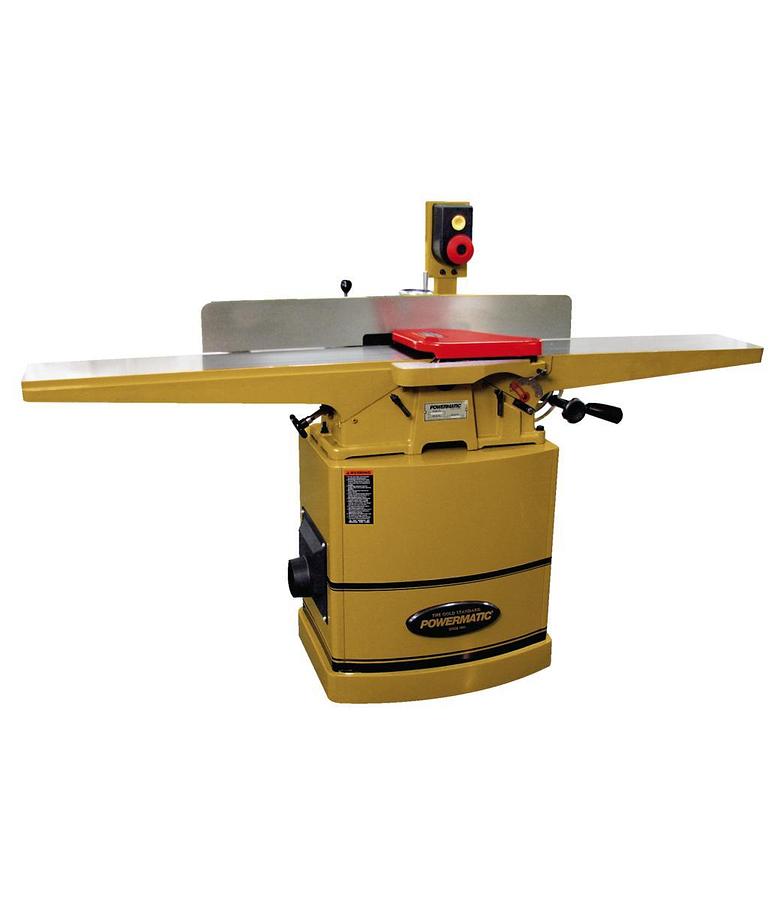

8" Jointer, 2HP 1PH 230V, Helical Head (60HH)
Description
This 8" Jointer delivers precision and user-friendly functionality in one machine. The infeed table lever allows quick height adjustments, while a rotating handle provides fine-tuned control over the cut depth. The fence tilts smoothly via a worm gear system, operated with a simple handwheel for ease of use.
With 73 inches of table length, the jointer offers extended support for larger workpieces. A non-marring insert on the fence protects the table from scratches during adjustments.
Available with either a three-knife high-speed steel cutterhead or a helical cutterhead featuring 54 four-sided inserts, the jointer caters to various performance needs. For convenience, the operating switch is positioned high for easy access, and magnetic-base push blocks can be stored on any metal surface for quick retrieval.
Specifications
| Manufacturer | PowermaticC |
| Model | 60HH |
| Condition | New |
| Stock Number | PM9-1610086K |
| Warranty | 5 Year |
| Type of Cutterhead | HELICAL |
| Cutterhead Diameter (In.) | 3 |
| Maximum Cutting Depth (In.) | 1/8" |
| Cuts Per Minute | Not Applicable |
| Cutterhead Speed (RPM) | 7000.0000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Dust Port Outside Diameter (In.) | 4 |
| Fence Tilt (Deg.) | 90 to 45 R |
| Infeed Table Length (In.) | 35-1/4 |
| Number of Knives | 54 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 1 |
| Recommended Circuit Size (Amps.) | 20 |
| Motor Amps | 9 |
| Gross Weight | 518.0 |
| Net weight | 490.0 |
| Prop 65 | Cancer and Reproductive Harm |
