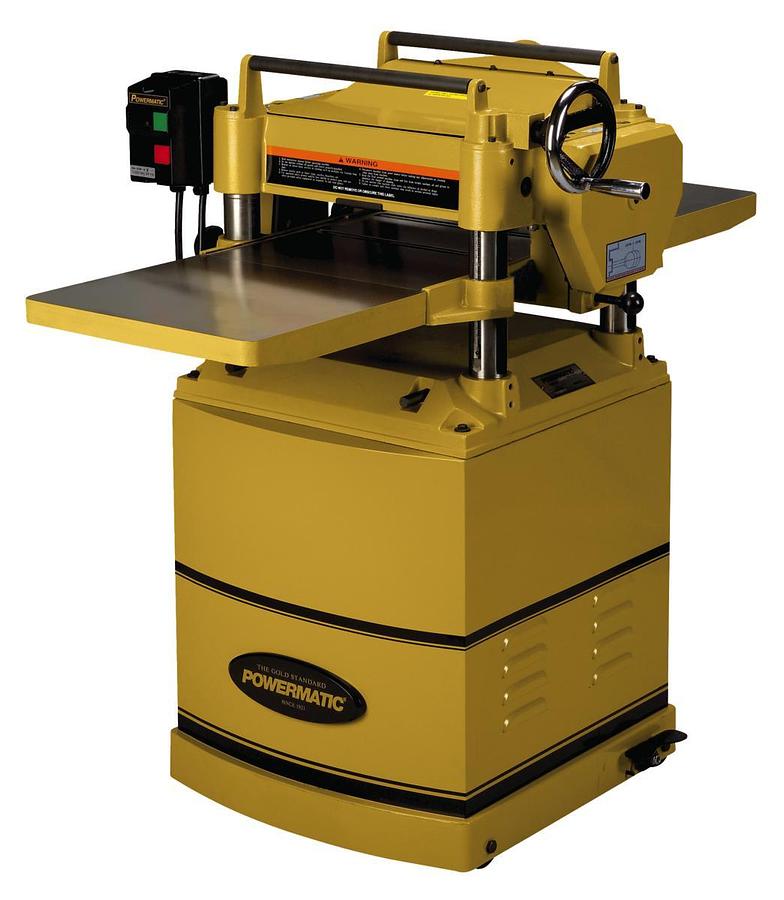

15HH, 15-Inch Planer, Helical Cutterhead, 3 HP, 1Ph 230V
Description
The helical cutterhead on this Planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4" dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.
Specifications
| Manufacturer | PowermaticC |
| Model | 15HH |
| Condition | New |
| Stock Number | PM9-1791213 |
| Cuts Per Minute | Not Applicable |
| Cutterhead Diameter (In.) | 2-7/8 |
| Cutterhead Speed (RPM) | 4500.0000 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Feed Rate (FPM) | 16/20 |
| Maximum Depth of Cut (In.) | 3/16 |
| Maximum Full Width Depth of Cut (In.) | 1/8 |
| Maximum Planing Thickness (In.) | 6 |
| Maximum Planing Width (In.) | 14-7/8 |
| Minimum Planing Length (In.) | 8 |
| Motor Amps | 15 |
| Motor Phase | 1 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 30 |
| Style (Type) | Floor |
| Table Support | 4 Column |
| Type of Cutterhead | HELICAL |
| Warranty | 5 Year |
| Gross Weight | 582.0 |
| Net weight | 568.0 |
