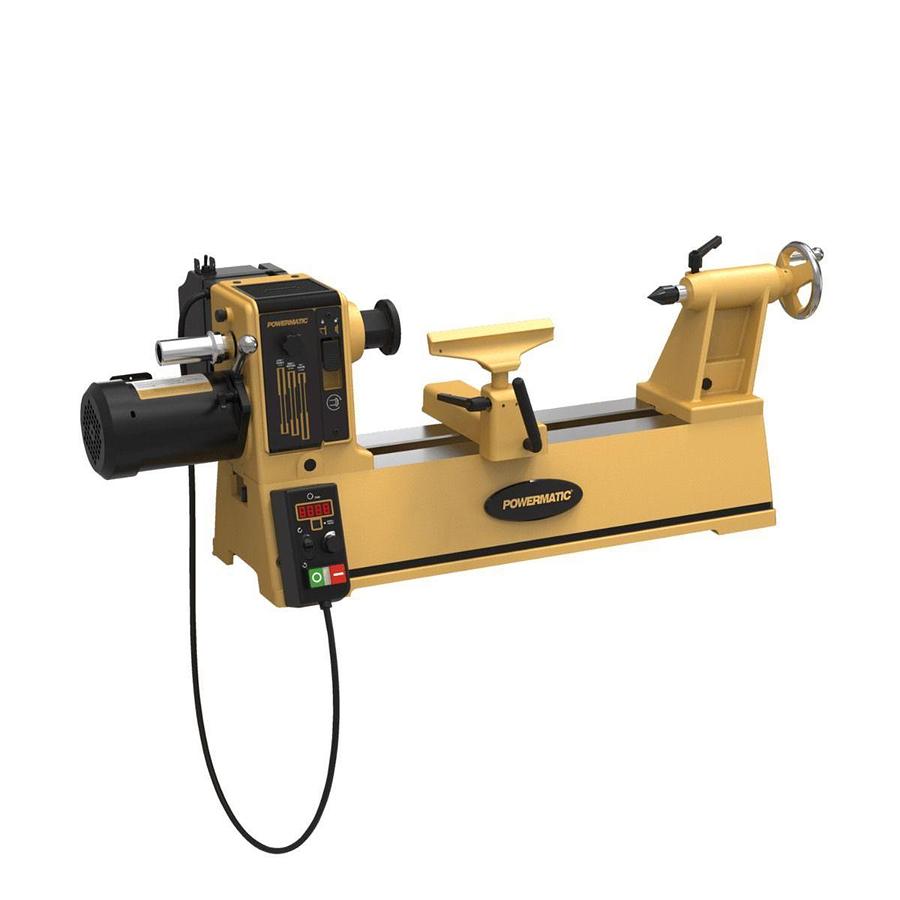

Powermatic 2014 Lathe

Description

For nearly one hundred years, Powermatic has been dedicated to woodworkers. As a market leader in woodturning, Powermatic is proud to offer the powerful PM2014 model Lathe. Only requiring a 115V single phase power source the inverter delivers 1HP, 230V, 3PH performance, giving users maximum speed with minimum input. With a capacity of 14" swing over bed and 20" between centers which can be increased with the optional 13" bed extension. Premium sliding headstock and removable tailstock feature allows greater clearance when positioned at the end of the bed for outboard turning. Robust cast iron bed reduces vibration when turning larger and rougher pieces. Digital Indexing and spindle speed readout are clearly visible on the magnetic repositionable control box. The new ergonomic stand adjusts from centerline to floor from 34 inches to 46 inches allowing the PM2014 to be accessible to users of a range of heights.


  • Acme threads on tail stock for smoother operation and longevity
  • Attached tool caddie allows convenient access to centers, wrenches, and accessories
  • Banjo features a non-marring, pinch style clamp for solid tool rest placement
  • Chrome-trimmed hand wheels are ergonomic for a comfortable feel
  • Includes 8 inch tool rest with 1 inch post
  • Lathe easily disassembles for better portability
  • Main power disconnect on rear of headstock lock out for safety
  • 24 positive locking indexing position, displayed on the moveable magnetic control box, simplifies the indexing process
  • Variable speeds from as low 15RPMs to as high as 3600RPMs
  • With constant monitoring of the motor the inverter keeps torque consistent.
  • Specifications

    ManufacturerPowermaticC
    ModelPM2014
    ConditionNew
    Stock NumberPM9-1792014
    Bed ConstructionCast Iron
    Distance Between Centers (In.)19-1/4
    Headstock MovementSliding
    Motor Amps3
    Motor (HP)1
    Motor Phase1
    Motor Power (HP)1
    Motor Voltage (V.)230
    Number of Indexing Positions24
    Outboard TurningYes
    Overall Dimensions (L x W x H) (In.)52 x 24 x 18
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Quill TaperMT2
    Shipping Dimensions (L x W x H) (In.)33.25 x 18.9 x 22.83
    Size20 x 14
    Speed Range (RPM)15-3600
    Spindle TaperMT2
    Spindle Thread (In./TPI)1-1/4"/8 TPI
    Style (Type)Benchtop
    Swing Over Bed (In.)14-1/4
    Swing Over Tool Rest Base (In.)10-3/4
    Warranty5 Year
    Gross Weight205.7
    Net weight183.0
