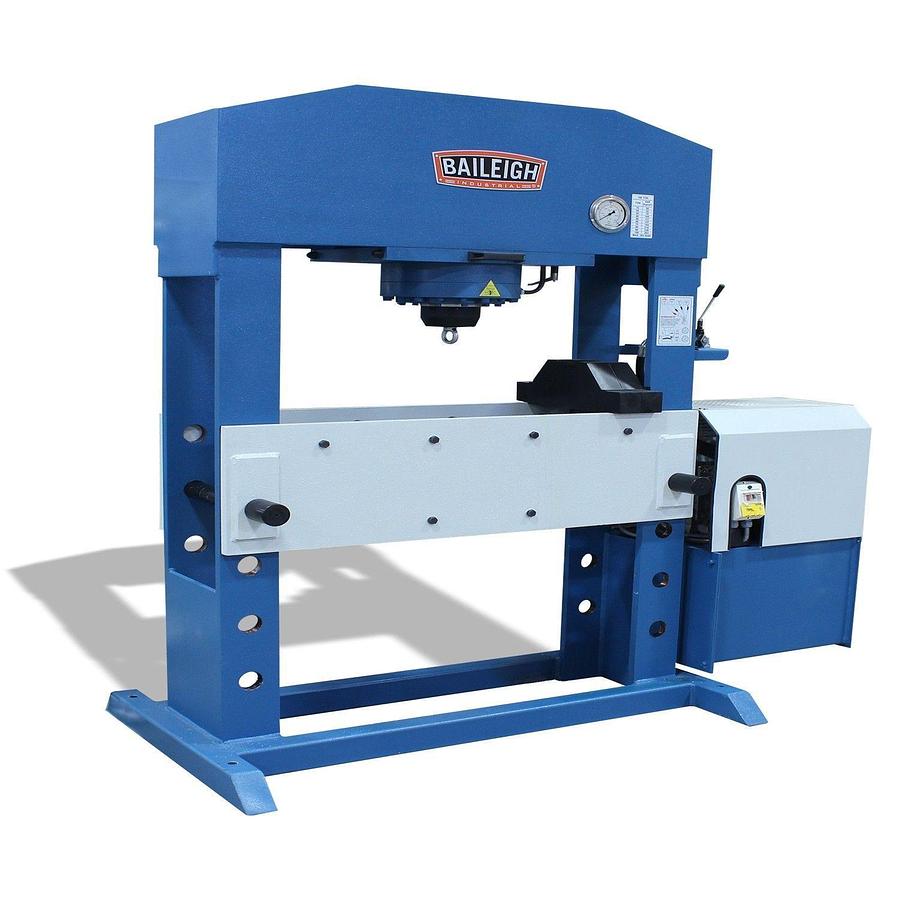

Hydraulic Workshop Press HSP-110M-1500-HD

or
Call (954)444-4004

Description

  • 110-ton capacity
  • 220V 3-phase power
  • 61.81" working width
  • 11.8" stroke

    • With a welded cast-steel framework, this hydraulic press is a must-have for any engineering workshop, repair firm, or technical training institutions.
    Recommended for: General assembly, straightening work, testing workpieces, and pressing bearings in and out.


  • 110-ton maximum capacity.
  • 61.8” working width.
  • 8”-diameter cylinder with 11.8” stroke.
  • 7.5 hp motor runs on 220-volt 3-phase power.
  • 2 speeds and pressure regulator let you adjust to suit a given project.
  • Cylinder moves left and right within the frame for off-center parts.
  • Effortlessly adjust the height of the heavy work table using the hydraulic cylinder and lifting chains.
  • 6.3” chrome piston with automatic return saves time after you’re finished applying pressure.
  • Typically kept in stock for fast shipping.
  • Delivery in accordance with CE standards.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelHSP-110M-1500-HD
    ConditionNew
    Stock NumberBA9-1012427
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight3900.0
    Net weight3900.0
    Cylinder MovableYes
    Maximum Pressure (PSI)3814 psi
    Minimum Return Speed (In./Sec).393" / sec.

    Documents
