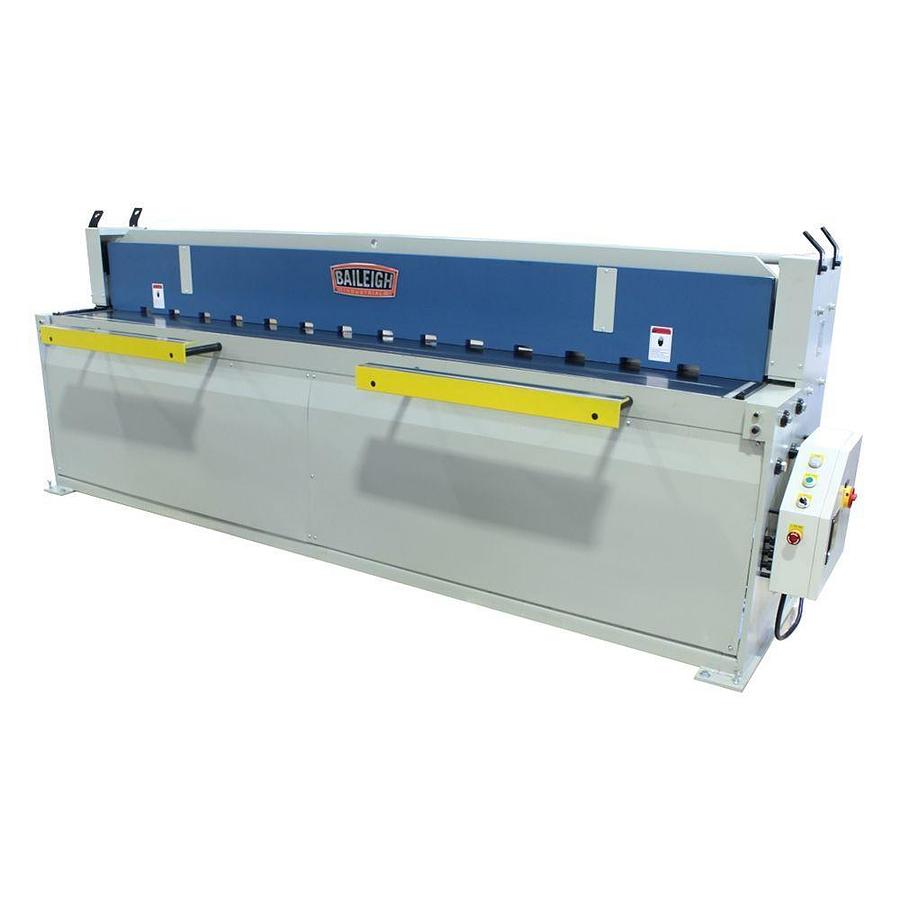

Sheet Metal Shear - (SH-12010)

or
Call (954)444-4004

Description

  • 120 " hydraulic shear
  • 10 gauge mild steel max. capacity
  • 7.5 hp 220-volt 3-phase motor
  • 20 strokes per minute

    • Need to shear extremely long sheets of 10-gauge mild steel? Built with a steel plate frame for accuracy and dependability, this Hydraulic Shear will help you increase production.
    Also available in 80”-long and 100”-long versions (both with 10-gauge capacity). We also offer an 120” Shear with a 14-gauge capacity.

  • 120” length
  • Up to 20 strokes per minute
  • 7.5 hp motor runs on 220-volt 3-phase power
  • 10-gauge mild steel maximum capacity with a minimum capacity of 24-gauge mild steel. Adjustable 24” back gauge ensures repeatability
  • Powerful industrial-grade hydraulics produce smooth movements that prolong blade life
  • Front support arms and table guides keep the material square to the blade
  • 3 modes on the operator console: Inch mode - Jog the control and ease the blade down to the material, Single mode - Make one cut cycle per foot pedal push, and Auto mode - Continue cycling as you hold the pedal down
  • Comes standard with high carbon chromium blades. Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money
  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
  • Fully welded steel construction helps prevent flex and maintain accuracy for many years

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelSH-12010
    ConditionNew
    Stock NumberBA9-1007063
    Back Gauge Capacity (In.)24"
    Front Gauge Capacity (In.)24
    Prop 65Cancer and Reproductive Harm
    Shearing Length Capacity (In.)120"
    Style (Type)Sheet Metal Shear
    Warranty1 Year
    Gross Weight6600.0
    Net weight6600.0
    Mild Steel Capacity (Gauge)10
