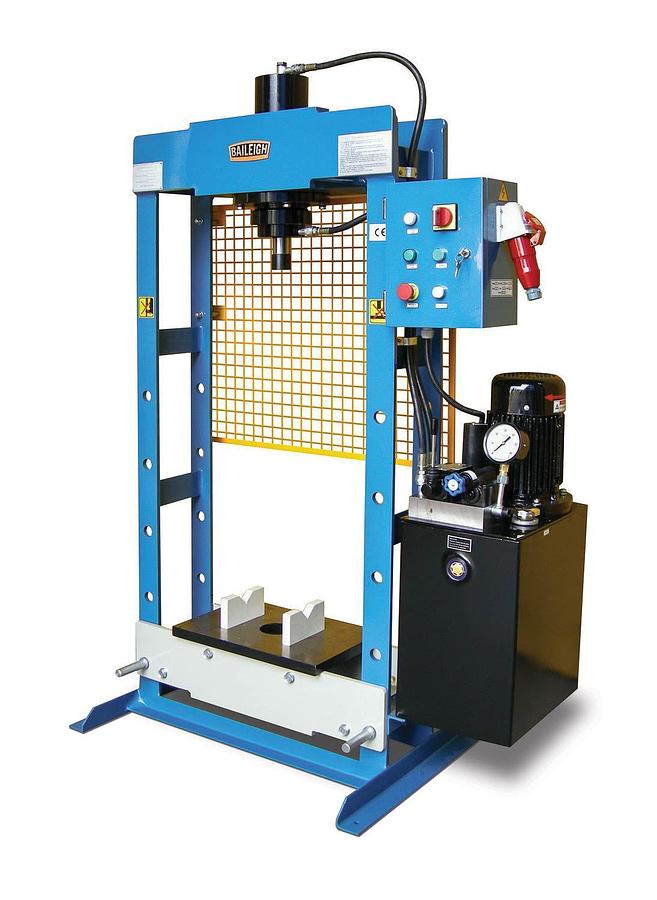

Hydraulic Press HSP-30M

or
Call (954)444-4004

Description

  • 30-ton hydraulic H-frame press
  • 220V single-phase power
  • 27.5" working width
  • 9.5" stroke

    • With its sturdy plate steel construction and piston-style hydraulic pump, this 30-ton hydraulic press for sale offers one of the best values on the market.
    SPECIAL NOTE:

  • 30-ton capacity hydraulic press.
  • 27.5” working width.
  • 5.74” diameter cylinder with 9.8” stroke.
  • 3 hp motor runs on 200-volt single-phase power.
  • Cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.
  • Comes standard with a pressure gauge.
  • Includes 2-piece V-block.
  • Rear safety cage included(not shown in pictures)
  • Fully-welded steel frame enables you to use the machine’s force at full capacity without worrying about flexing.
  • Baileigh covers this hydraulic shop press with a 1-year parts warranty as well as lifetime technical support by phone.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelHSP-30M
    ConditionNew
    Stock NumberBA9-1012401
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight1060.0
    Net weight1060.0
    Cylinder MovableYes
    Distance From Table To RamMin. 9.84" - Max. 41.34"
    Piston Diameter (In.)2"
