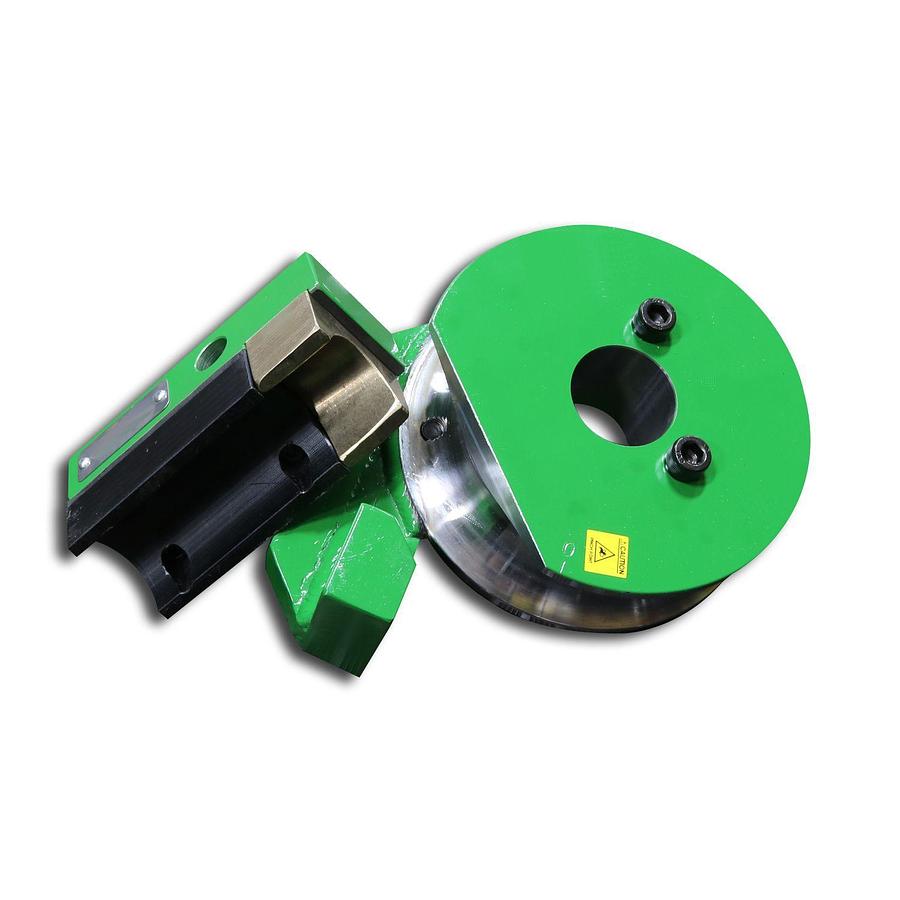

2" Round Pipe Die Set 6" CLR - (DS-2000P-R600)

or
Call (954)444-4004

Description

  • 2" round pipe (2.375" OD) die set
  • 6" centerline radius

    • FOR PIPE ONLY!
    2" Round pipe (2.375" OD) die set with a 6 Inch Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on .154" wall thickness (Schedule 40).

  • Designated pipe by green color
  • 1018 billet steel forming die
  • Replaceable / Consumable counter die inserts for counter die block
  • Welded / Bolted open side hook arm, for easy tube insertion and removal
  • Nonproprietary spindle bore
  • Optional Roller assemblies for special applications
  • Optional hardened 4140 billet dies for production heavy wall bending (sch80 & thicker), and production stainless bending

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelDS-2000P-R600
    ConditionNew
    Stock NumberBA9-DS2000PR600
    Center Line Radius6"
    Max Bend (Degrees)180.0000
    Prop 65Cancer and Reproductive Harm
    Recommended Wall Thickness0.154
    WarrantyNo value
    Gross Weight81.0
    Net weight81.0
    Material Dimension (In.)2.375"
