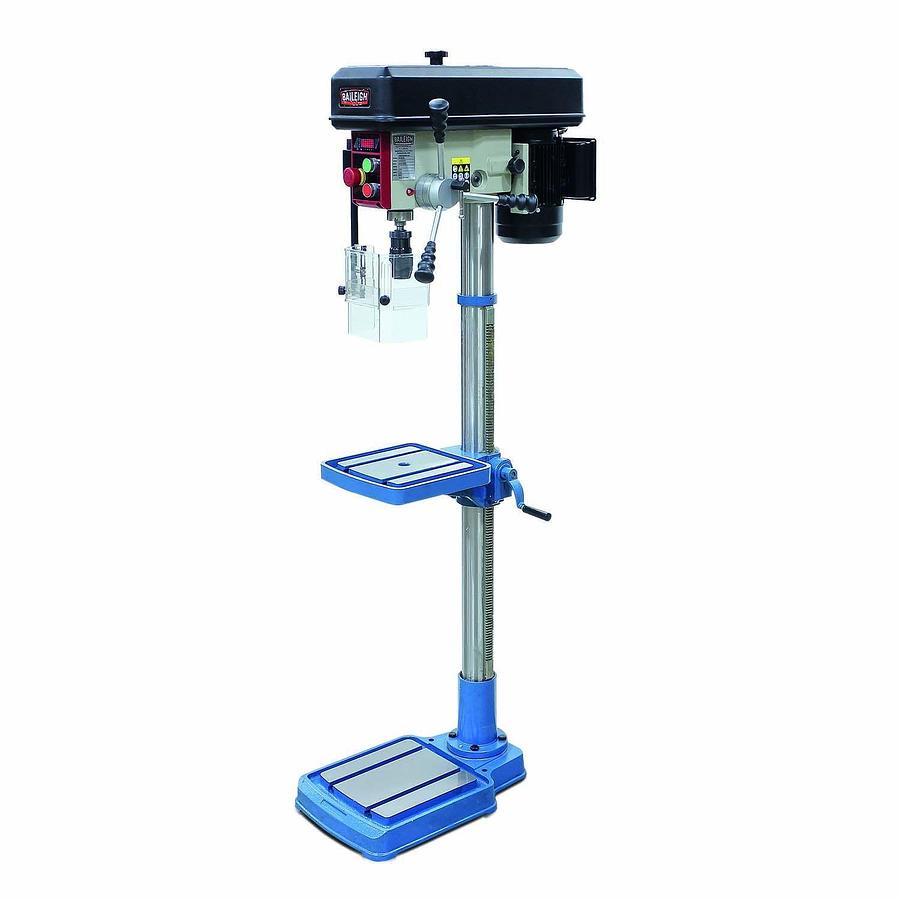

DP-0625E Drill Press

or
Call (954)444-4004

Description

  • 110V 1/2 hp motor.
  • Belt-driven drill press
  • 5/8” steel maximum capacity.
  • 5 speeds: 250 to 2900 rpm.

    • This economical belt driven drill press runs smoothly even at full capacity - this 14" drill press lets you run tooling at the proper speed to fit your application with its 5 speed pulley configuration which helps extend tooling life.



  • .5 hp motor requires 110 volt power and will work at any shop or site.
  • Belt driven head drills a maximum capacity of 5/8” steel.
  • 5 speeds in the range from 250 to 2900 rpm to suit your application.
  • 2-7/8" steel column eliminates flexing even when drilling at full capacity.
  • Rigid cast iron base and table add strength to the drill’s structure.
  • Includes a safety shield around the drill head to protect you.
  • Baileigh backs this drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelDP-0625E
    ConditionNew
    Stock NumberBA9-1022127
    Base Dimensions (In.)25-3/4" x 16-1/2"
    Base Size (In.)25-3/4" x 16-1/2"
    Chuck Size (In.)Includes B-16 1-16mm Keyless Chuck
    Column Diameter (In.)2-7/8
    Drilling Capacity Mild Steel (In.)5/8"
    Input Power110 Volt
    Number of Spindle Speeds5
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)1-3/4"
    Shipping Dimensions (L x W x H) (In.)69x44x23
    Speeds250, 700, 1150, 1900, & 2900
    Spindle Distance to Table (Max.) (In.)6" Min to 36" Max
    Spindle TaperB16
    Swing (In.)14"
    Table Size (In.)11" x 11"
    Table Tilt (Deg.)360°
    Warranty1 Year
    Gross Weight290.0
    Net weight290.0
    Distance From Spindle To Base (In.)48
    Shipping Weight (Lbs.)240
