Horizontal Band Saw - BS-916M

or
Call (954)444-4004

Description

  • 240V 1-phase power
  • 8.75" round capacity at 90°
  • Vise miters 45Deg.
  • 1" blade width

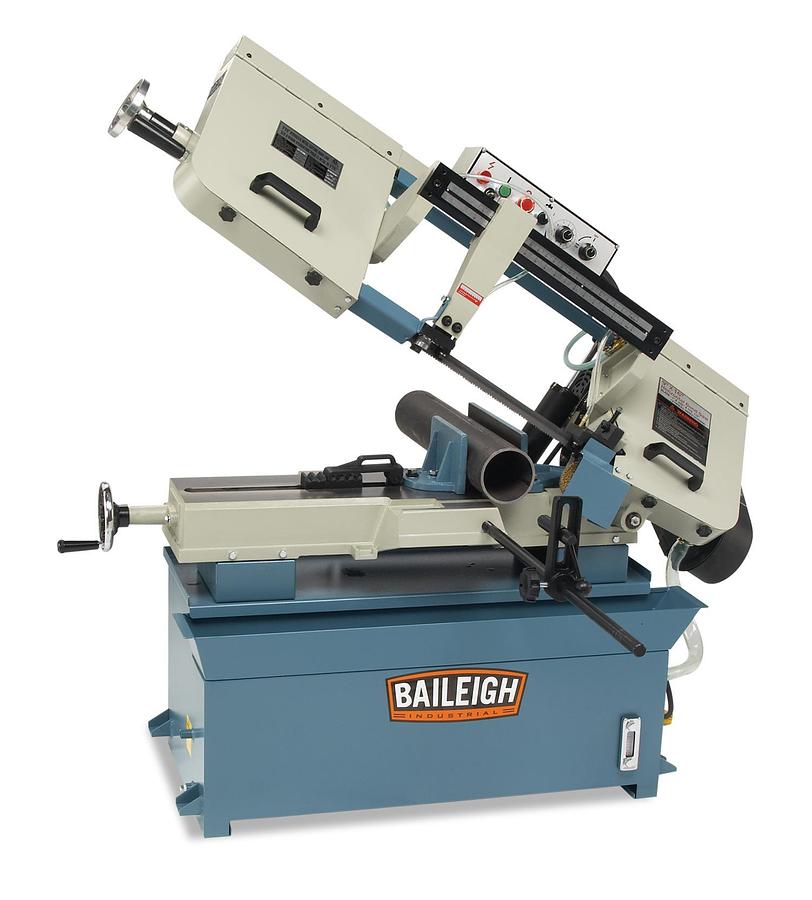

    • Based on our BS-300M, the Baileigh BS-916M metal cutting band saw has a compact footprint for small shops. This saw’s cast iron head and fully-welded steel base reduce vibration and ensure accuracy.
    Baileigh also offers a Single Phase Bandsaw.

  • 1.5 hp motor is powered by 240-volt single-phase power
  • 8.75” round capacity at 90°
  • Vise miters up to 45°
  • Accepts standard 1” blades
  • 4 cutting speeds: 82, 132, 170, and 235 fpm
  • Patented blade tension device, with a liquid-filled gauge, lets you adjust the blade to the correct tension without difficulty
  • You can control the hydraulic descent through an easy-to-access panel located on top of the bow
  • Automatically shuts off at the end of the cut for safety and efficiency
  • Comes standard with a flood coolant system that washes away chips, lubricates the blade, and prolongs blade life

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBS-916M
    ConditionNew
    Stock NumberBA9-1001740
    AccessoriesIncluded Accessories
    Blade GuideRoller
    Blade Speeds (SFPM)82 x 132 x 170 x 235
    Capacity Rectangular 90 X 45 X 458.85" x 13.5" x 8.85" x 6.5"
    Capacity Round 90 X 458.85" x 6.5"
    Capacity Square 90 X 458.85" x 6.5"
    Descent ControlHydraulic
    DriveBelt x Pulley
    Input Power240V / 1-phase
    Type of Miter AdjustmentVise
    Miter Angle Range (Deg.)0 – 45°
    Motor (HP)1.5 hp
    Prop 65Cancer and Reproductive Harm
    ReturnManual
    Shipping Dimensions (L x W x H) (In.)69x44x46
    Table Height (In.)24
    Warranty1 Year
    Gross Weight696.0
    Net weight696.0
