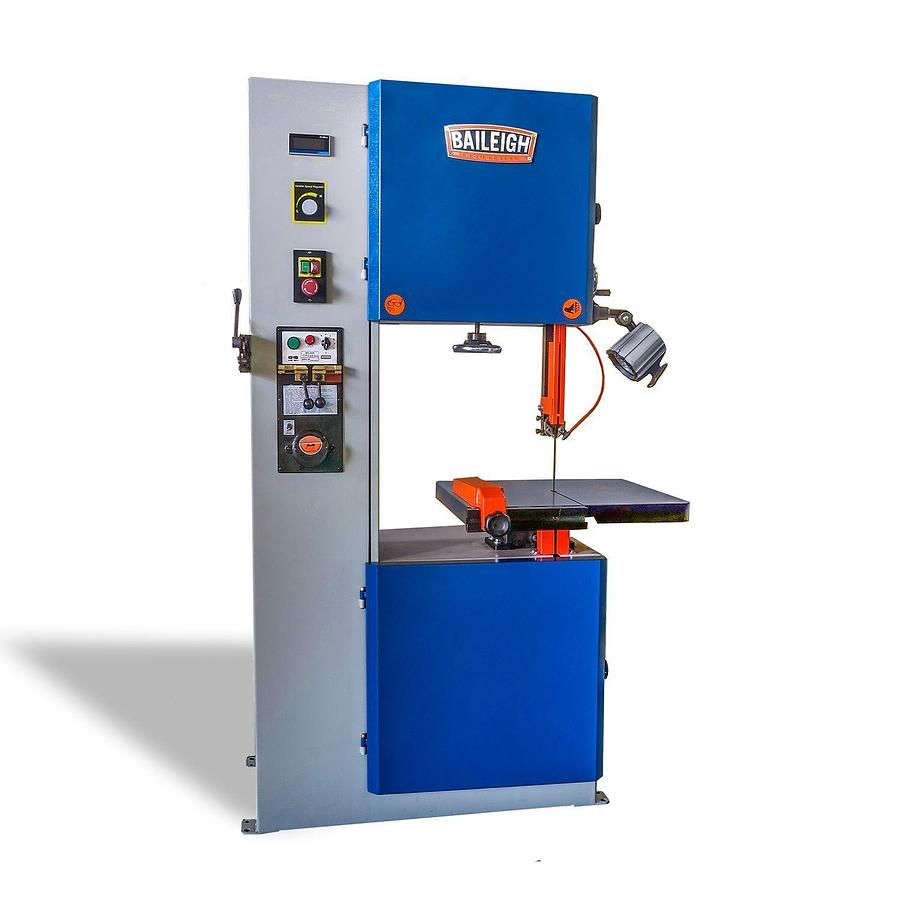

BSV-18VS-220-V2 - Variable Speed Vertical Band Saw

Description

  • 220-volt single-phase
  • 18" throat depth
  • 12.9" maximum cutting thickness
  • 1/8" to 5/8" blade width
  •
    Within our lineup of vertical bandsaws, the BSV-18VS-220-V2 metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.

    *1 hp motor runs on 220-volt single phase power.
    *Wide 18" throat depth.
    *12.9” maximum cutting thickness.
    *Accepts standard 1/8” to 5/8” blades.
    *Cast iron table can pivot front to back and left to right.
    *Includes a cast iron rip fence to make sure your cuts are straight and repeatable.
    *Variable speed from 90 to 1400 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
    *Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
    *This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
    *Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
    *Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
    *Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
    *Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
    *LED work light lets you see what you’re cutting more clearly.
    *Covered by a 1-year parts warranty.
    *Both the saw and its replacement parts are typically in stock for fast deliveries.
    *Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.

    Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.


    Specifications

    ManufacturerBaileigh
    ModelBSV-18VS-220-V2
    ConditionNew
    Stock NumberBA9-1230401
    AccessoriesIncluded Accessories
    Blade Length (In.)Range 146.45" - 147"
    Blade Speed (RPM)90 - 1400 fpm
    Blade Thickness0.032
    Blade Width (In.)1/8" - 5/8"
    Input Power220 Volt Single Phase
    Motor (HP)1 hp
    Prop 65Cancer and Reproductive Harm
    Shipping Dimensions (L x W x H) (In.)60” x 45” x 93”
    Table Tilt (Deg.)15° Left, 45° Right
    Throat Depth (In.)18"
    Gross Weight770.0
    Net weight770.0
    Speed ControlInverter
