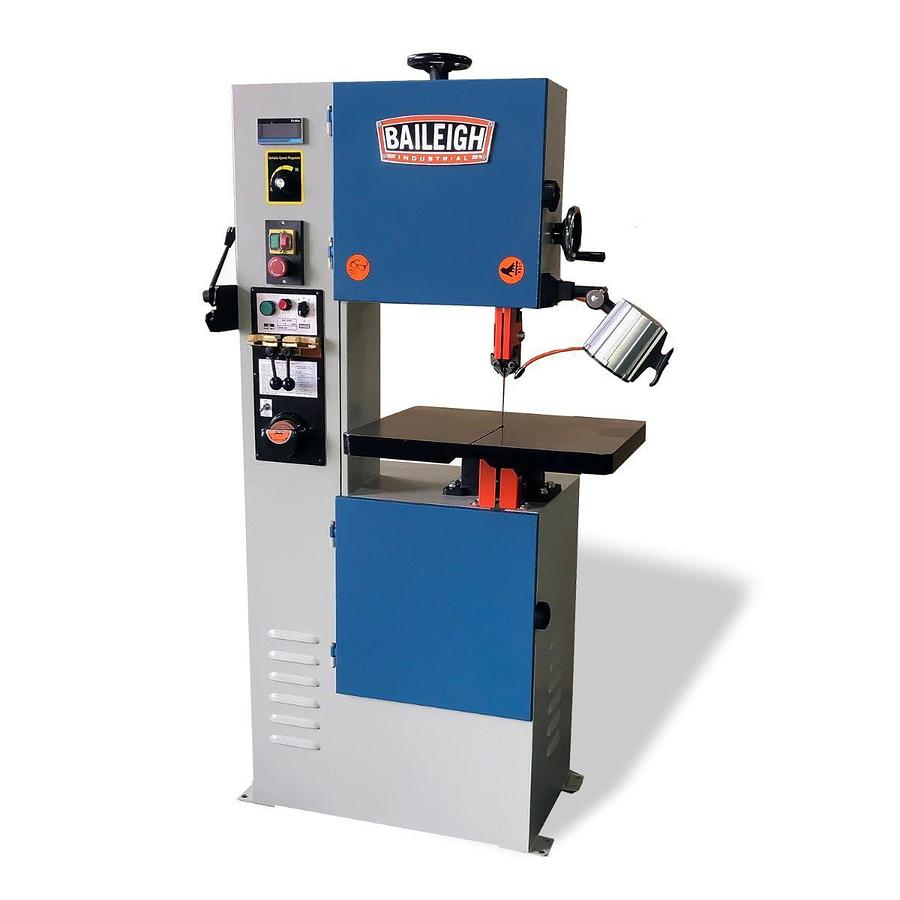

Vertical Bandsaw | BSV-14VS-V2

or
Call (954)444-4004

Description

  • 120 volt
  • 14.17" throat depth
  • 7.08" maximum cutting thickness
  • 1/8" to 1/2" blade width

    • Within our lineup of Vertical Bandsaws, the BSV-14VS-V2 metal cutting bandsaw increases capacity and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade.
    Covered by a 1-year parts warranty. Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.
    Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.


  • 1 hp motor runs on 120-volt power and accepts standard 1/8” to 5/8” blades
  • Wide 13.97" throat depth and 9.05” maximum cutting thickness
  • Cast iron table can pivot front to back and left to right while the Halogen work light lets you see what you’re cutting more clearly
  • Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable
  • Variable speed from 65 to 295 fpm allows you to adjust the speed for cutting wood, metal, and even plastic while the air blowdown system cools the blade and keeps the saw clean from material chips and shavings
  • Change the speed with the hand wheel (just turn right for higher speed, left for lower) -with the help of a speed scale that lets you see the estimated blade speed
  • This bandsaw includes everything you need to cut out the center of the material without having to fix a cut through it
  • Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together
  • Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades
  • Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBSV-14VS-V2
    ConditionNew
    Stock NumberBA9-1230388
    AccessoriesIncluded Accessories
    Blade Length (In.)105.11" - 115.03"
    Blade Speed (RPM)110 - 1200 FPM
    Blade Thickness0.032
    Blade Width (In.)0.118" - 0.51"
    DriveA55 (two pieces)
    Input Power110 Volt
    Motor (HP)1 HP ~ 110V
    Prop 65Cancer and Reproductive Harm
    Shipping Dimensions (L x W x H) (In.)60” x 45” x 81”
    Table Tilt (Deg.)15° Left, 15° Right, 15° Front, 15° Back
    Throat Depth (In.)13.97"
    Warranty1 Year
    Gross Weight445.0
    Net weight445.0

    Documents
