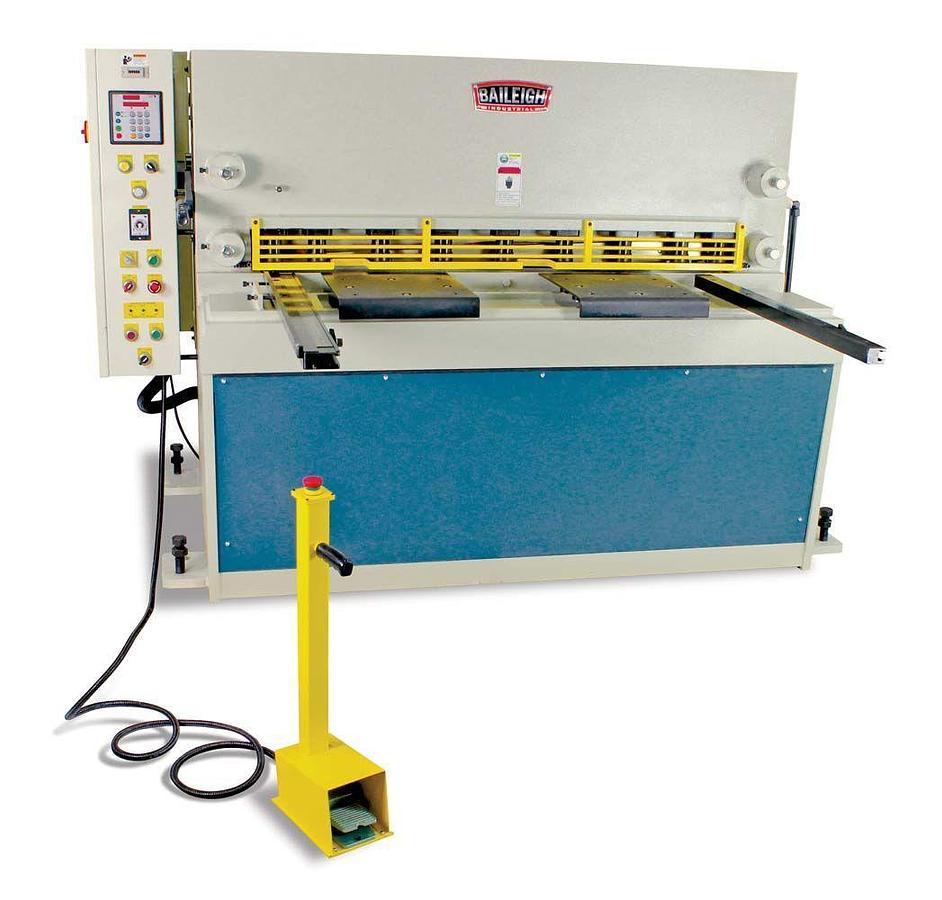

220 Volt Three Phase Heavy Duty Hydraulic Shear.52" Length3 (1/4") Gauge Mild Steel Capacity.Includes Hydraulic Rake AdjustmentThe Baileigh Industrial SH-5203-HD-NC is a heavy-duty Hydraulic Shear that is built for years of heavy cutting production requirements. This Hydraulic Shear can cut 52” wide sheet metal with a thickness up to ¼" thick. The SH-5203-HD-NC Sheet Metal Shearing machine comes standard with an upper blade carriage that rides in a 3-axis bearing housing that runs on a heavy-duty precision ground and hardened rail system for unbeatable accuracy and longevity of blade life.
Eight hydraulic hold downs providing 3.2 tons of pressure each, ensure the sheet of metal doesn't lift while being sheared to the required lengthShadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirementsHeavy-duty hydraulic shear comes standard with a simple to operate control panel including the rake adjustment, jog/run/stop controls, program pad for the back gauge, and production counterShears blade gap can be altered by a simple handle adjustment in seconds when changing material thicknessesHigh carbon chromium blades that have several edges, so as the blades wear, they can be flipped several times before re-sharpening is requiredSimple remote operator controls pendant house an E-Stop button and foot pedal controlsThe framework uses plate steel that is fully welded to increase stability and reduce vibrationMetal Cutting Shear includes front and rear product supports, a roller in feed table, and side guides to easily maneuver the plate steel for the next cutProgrammable quick change back gauge rides on a screw ball rail system that has a positioning encoder for accuracy
