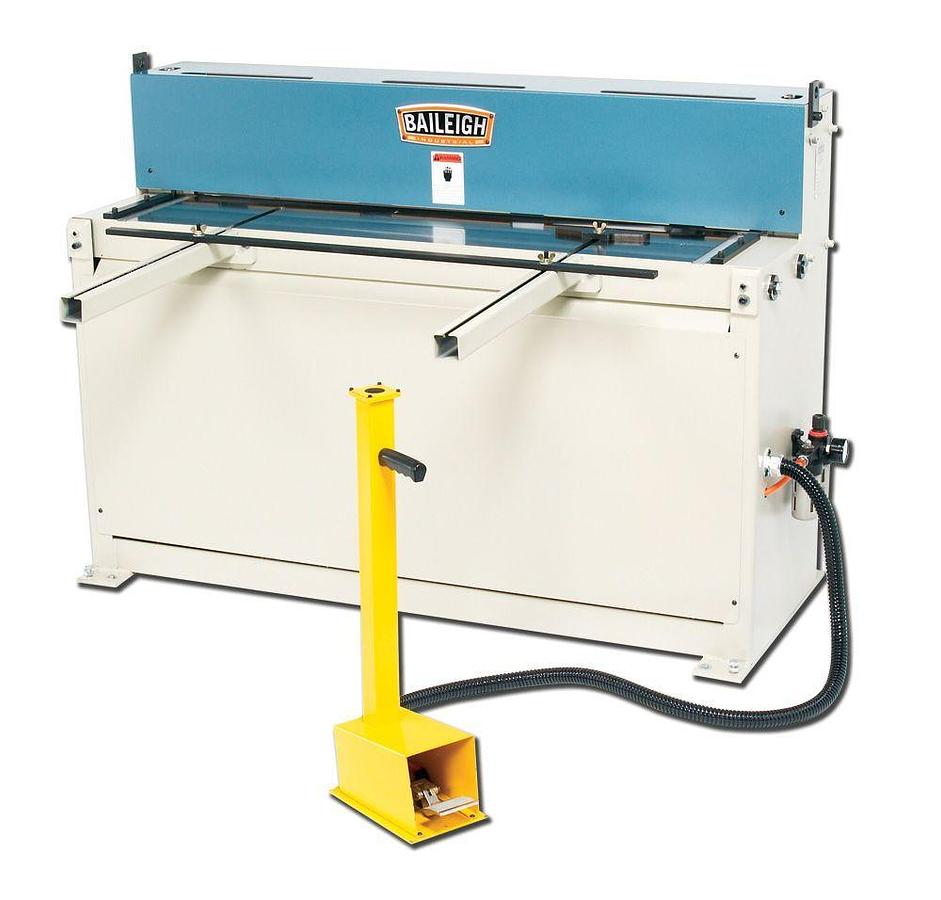

Sheet Metal Air Shear - (SH-5216A)

or
Call (954)444-4004

Description

  • Air-powered shear
  • 52 " length
  • 16 gauge mild steel capacity
  • 20 strokes per minute

    • Built of fully integrated and welded all-steel plate, this pneumatic Shear will last for many years. The air powered Sheet Metal Shear is perfect for schools and shops cutting 16 gauge mild steel or lighter. Order this air sheet metal shear from Baileigh Industrial today.
    *Available at many hardware stores.

  • Cuts up to 52”-wide sheet metal
  • Requires only compressed air between 90 and 115 psi
  • No electrical power needed
  • Regulator lets you control the airflow
  • Can cut at 20 strokes per minute for high production
  • High-chromium carbon blades have multiple cutting surfaces for extended life between re-sharpening
  • Oilers make maintenance easy and allow you to keep the machine running smoothly with less friction
  • Working table offers integrated squaring stops with scale
  • Includes front and back material supports as well as side guide
  • Manual rack and pinion back gauge with quick lock and measuring scale help you easily make repeatable cuts

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelSH-5216A
    ConditionNew
    Stock NumberBA9-1007163
    Cutting Blade Length (In.)52.0000
    Front Gauge Capacity (In.)24
    Prop 65Cancer and Reproductive Harm
    Shearing Length Capacity (In.)52"
    Style (Type)Sheet Metal Air Shear
    Warranty1 Year
    Gross Weight1400.0
    Net weight1400.0
    Mild Steel Capacity (Gauge)16
