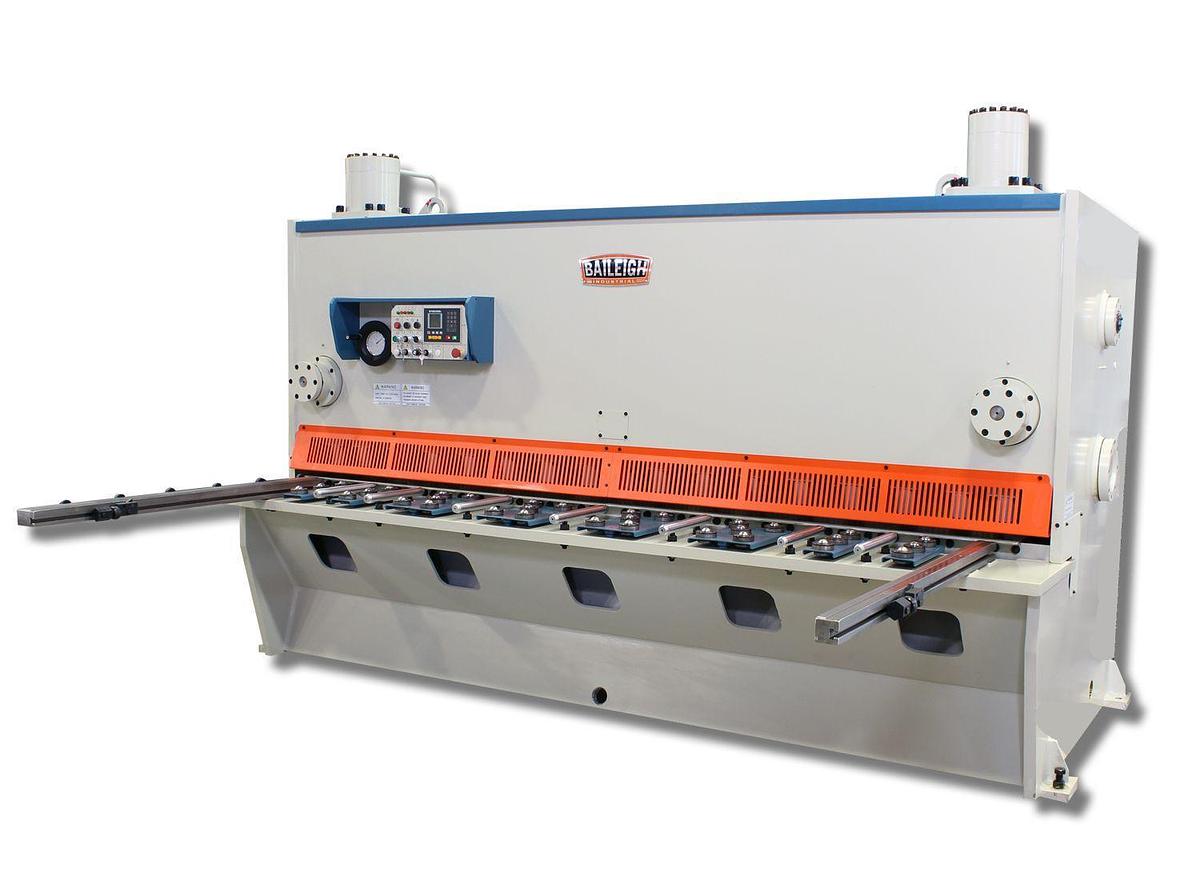

Three Phase Heavy Duty Hydraulic Shear - (SH-120500-HD)

or
Call (954)444-4004

Description

  • 120 " length
  • 0.50" mild steel capacity
  • 220V 3-phase power
  • Adjustable blade gap and rake angle

    • Weighing over 23,000 lbs. with a massive steel frame, this Hydraulic Shear will perform day in and day out for years. The NC controller lets you easily program the backgauge.

    Also available in a 96” model with ¼” maximum capacity and 120” model with ¼” maximum capacity.

  • Maximum capacity of ½”-thick mild steel and produces 9 strokes per minute
  • 20 hp motor runs on 220-volt 3-phase power with a 120” length for up to 10-foot sheets
  • Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan
  • Hydraulics are in the front for simple fluid changes - Just lift the panels using the convenient handles
  • Squaring arms support the material and keep it square to the blade while the adjustable blade gap prevents crimping or folding - Just turn the handwheel
  • Roller infeed tables, mounted on the front, help you load heavy materials
  • Fully programmable back gauge is accurate to =/- .01mm and internal memory can hold up to 100 programs
  • You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics - Press a button, then pull the lever until the light goes on
  • Comes standard with shadow line positioner for accurate material placement
  • Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelSH-120500-HD
    ConditionNew
    Stock NumberBA9-1007085
    Input Power220V / 3-phase
    Minimum Material Thickness (Gauge)18.0000
    Motor (HP)30 hp.
    Prop 65Cancer and Reproductive Harm
    Shearing Length Capacity (In.)120"
    Sheet Capacity (Mild Steel) (In.).50"
    Shipping Dimensions (L x W x H) (In.)158x88x100 & 69x46x9
    Speed Range (Stroke/min)9
    Squaring Arm Length48" (Can be used on right or left side, includes 4 bump stops)
    Warranty1 Year
    Gross Weight21000.0
    Net weight21000.0
