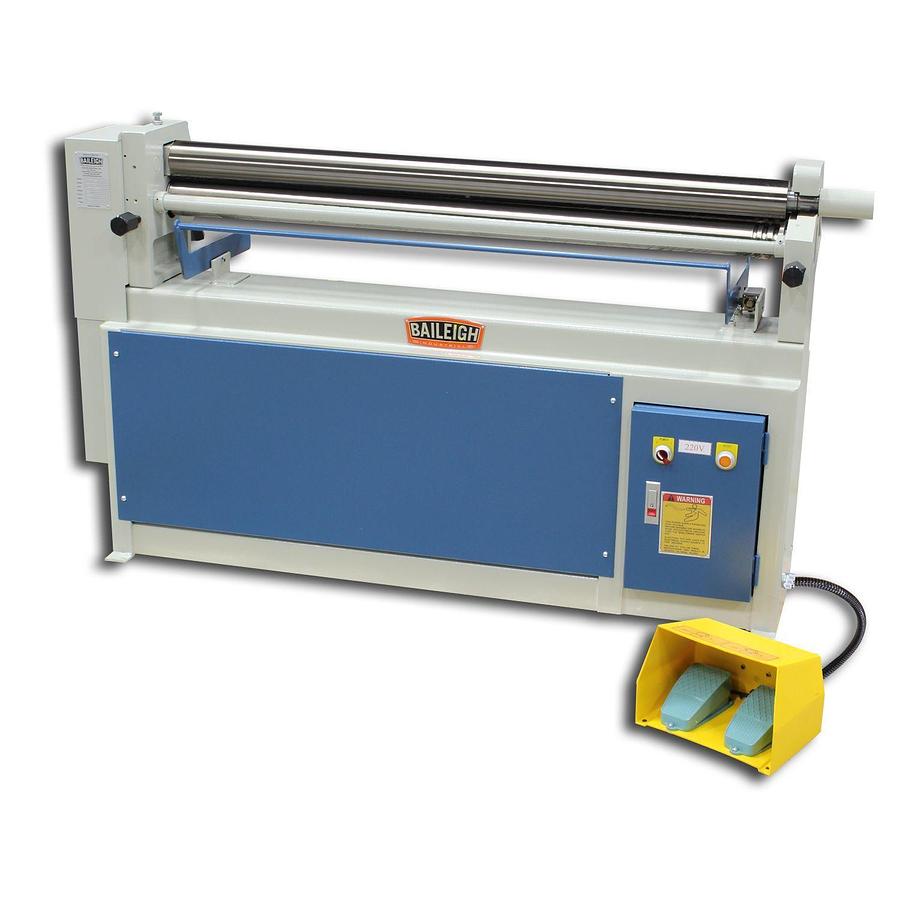

Baileigh Slip Roll SR-5016

or
Call (954)444-4004

Description

  • 220-volt 1-phase 1 hp motor
  • 2 driven rolls
  • 50 " width
  • 16 gauge mild steel capacity

    • This electric slip roll can save time and effort in any HVAC shop or general fabrication shop. Its solid plate steel upper main frame is precisely machined to keep all 3 rolls in alignment.

  • 50” working width
  • Can roll 16-gauge mild steel with ease
  • 1 hp motor runs on 220-volt single-phase power
  • Motor controls the movement of 2 driven rolls, so the SR-5016 has enough power for almost any job, anywhere
  • Includes foot pedal for both left and right rolling applications
  • All-steel lower base is fully welded and integrated with the uprights for rigidity
  • Comes with 3 grooves for rolling wire or rod
  • Integrated emergency stops to help maintain a safe workplace

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelSR-5016
    ConditionNew
    Stock NumberBA9-1007306
    Maximum Forming Length (In.)50
    Motor (HP)1 hp
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Wire Grooves (In.)Yes
    Gross Weight850.0
    Net weight850.0
    Mild Steel Capacity (Gauge)16 ga. (.060")
