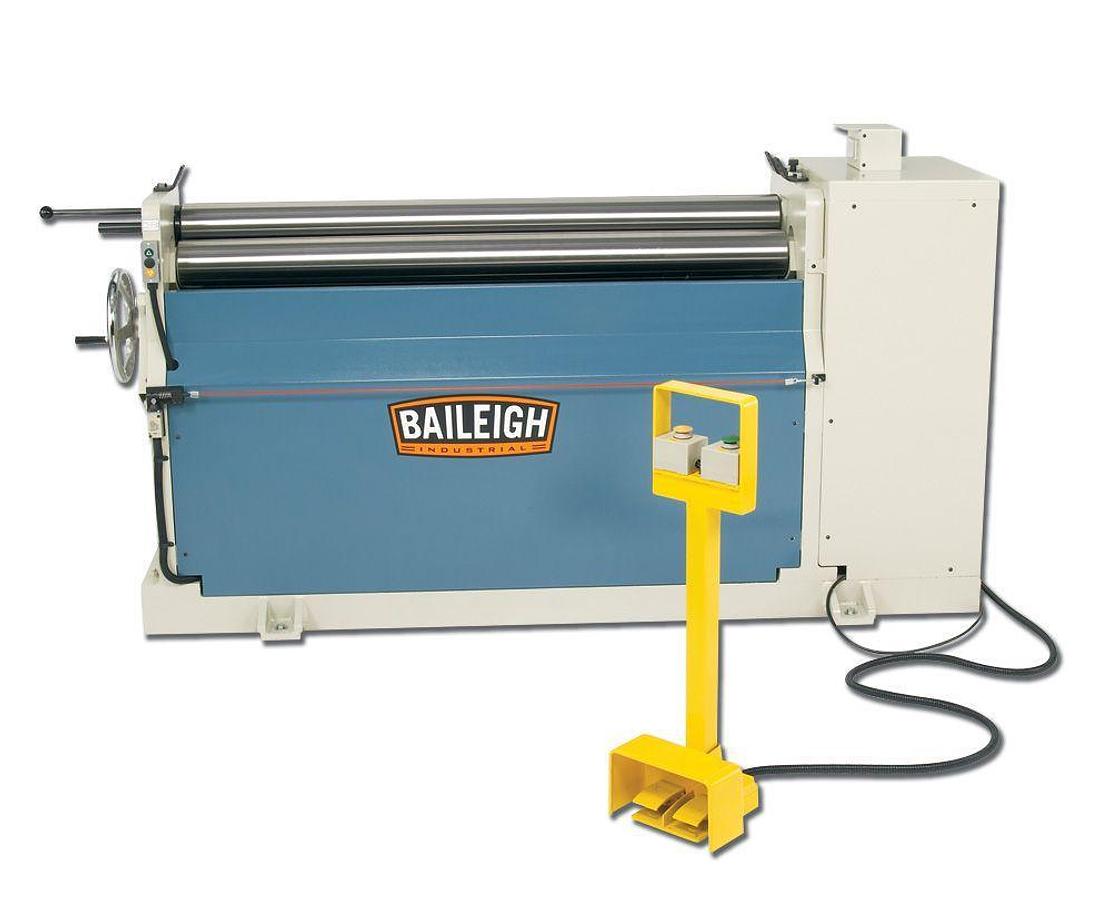

Plate Roller PR-510

or
Call (954)444-4004

Description

  • 5' width
  • 10 gauge mild steel capacity
  • 2 hp 220-volt 3-phase motor
  • 3 driven rolls with hydraulic back roll

    • The PR-510 is a great value hydraulic plate roll that would be at home in any shop. Its rigid steel frame prevents deflection, so you can accurately bend at maximum capacity for years.

  • 5’ working width
  • 10-gauge mild steel capacity across its full width
  • 2 hp motor runs on 220-volt 3-phase power
  • Single pinch roll former has 3 driven rolls to increase the efficiency of the machine
  • 4-¾ “OD rolls are hardened, then polished to ensure no marring to the material
  • Hydraulically controlled back roll can move up and down and tilt left and right for coning
  • Digital readout displays the back roll position for repeatable bends
  • Fully welded plate steel frame eliminates any deflection of the rolls even at maximum thickness capacity
  • Optional coning attachment available

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelPR-510
    ConditionNew
    Stock NumberBA9-1006533
    Maximum Forming Length (In.)60
    Motor (HP)2 hp
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight2950.0
    Net weight2950.0
