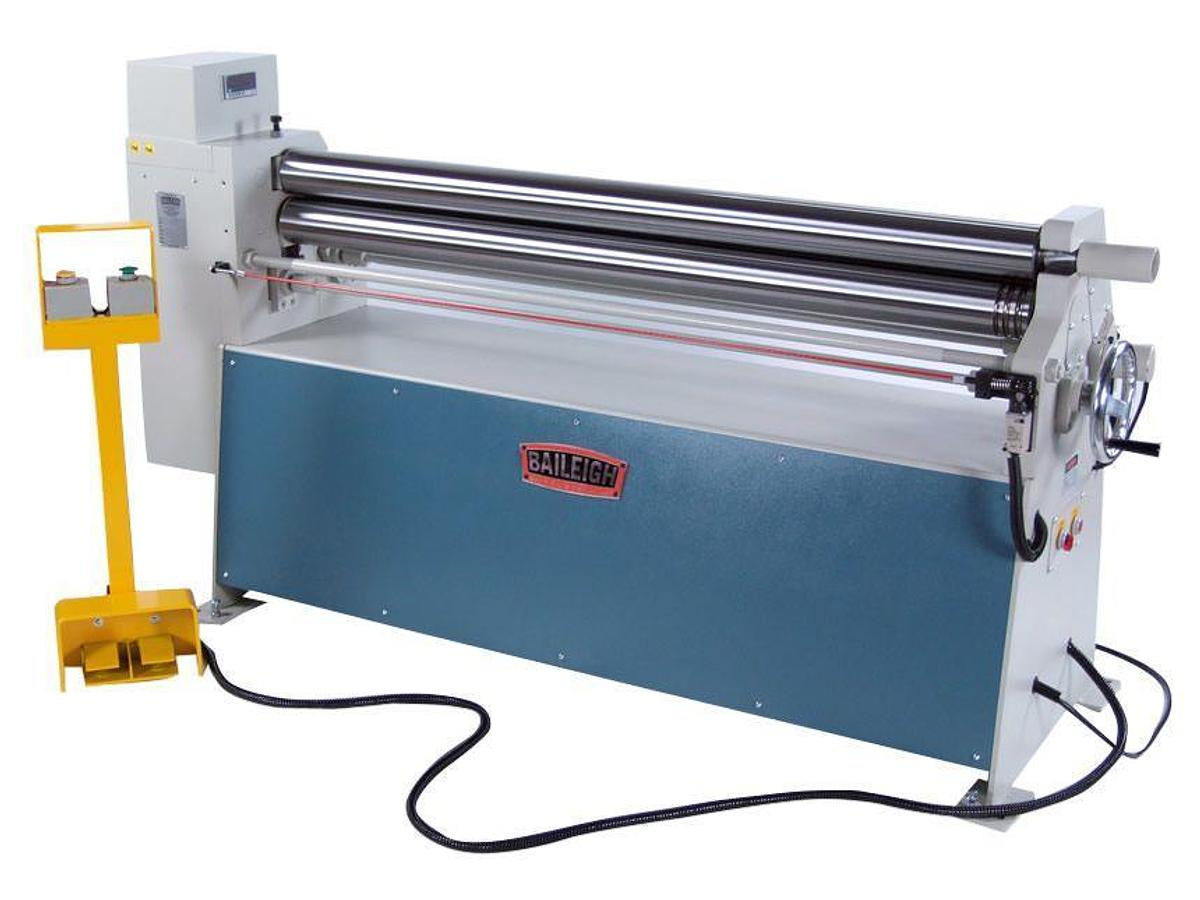

Plate Roller PR-514

or
Call (954)444-4004

Description

  • 5' working width
  • 14 gauge mild steel capacity
  • 2 hp 220-volt 1-phase motor
  • Independent hydraulic motor for back roll

    • The PR-514 is the perfect plate roll for small and medium applications. It comes standard with time-saving features, like a DRO, foot pedal controls, and an additional hydraulic motor.

  • 5' working width
  • 14-gauge mild steel capacity across its full width
  • 2 hp 220-volt single-phase motor transfers power directly to the driven rolls
  • Second hydraulic motor controls the movement of the back roll
  • Remote control pedestal includes foot pedal controls and the buttons for advancing or retracting the back roll position
  • Digital readout displays back roll position so you can repeat bends easily
  • DRO is positioned at the head of the machine, giving you a good line of sight no matter where you’re standing
  • Rigid steel frame, machined to exacting tolerances, helps prevent deflection

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelPR-514
    ConditionNew
    Stock NumberBA9-1006546
    Maximum Forming Length (In.)60
    Motor (HP)2 hp
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Wire Grooves (In.)Yes
    Gross Weight1690.0
    Net weight1690.0
