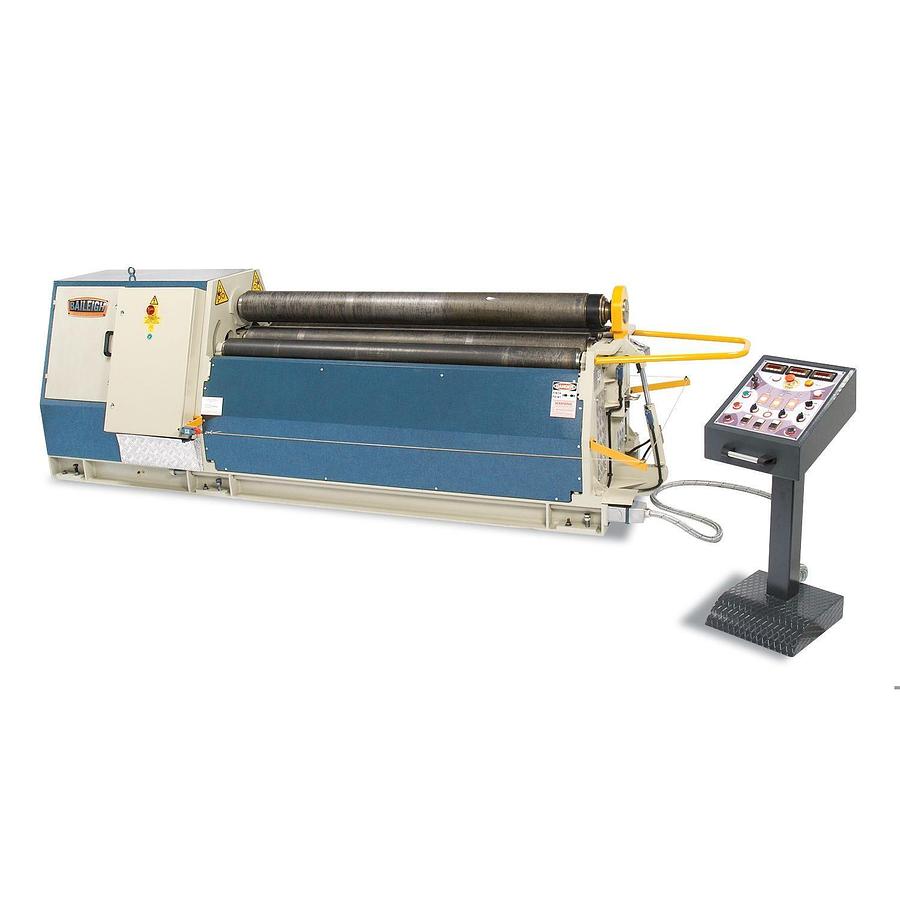

Four Roll Plate Roll PR-603-4

We designed this plate roll for years of trouble-free use. Direct movement on the lateral rolls can form tighter diameters with less work, whereas many plate rolls rely on orbital movement.
*Rolls up to ¼” mild steel in 6-foot lengths.
*Robust 4 hp motor runs on 220-volt 3-phase power.
*Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
*Direct linear piston movement for the lateral and forming rolls delivers even more power.
*Industrial 1.5 hp hydraulic motor moves the lateral rolls.
*3 digital readouts give accurate roll locations for easy repeatability.
*Operator control pedestal lets you conveniently manage all movements of the machine.
*Welded steel plate frame keeps the machine rigid and helps prevent flex.
*Covered by a 1-year parts warranty.
*Includes lifetime technical support by phone from our team of in-house machine experts.
Special Capacities:
*Capacity at 5x roll diameter without pre bending .315”.
*Capacity at 1.5x roll diameter without pre bending .236”.
*Capacity at 1.5x roll diameter with pre bending .157”.
