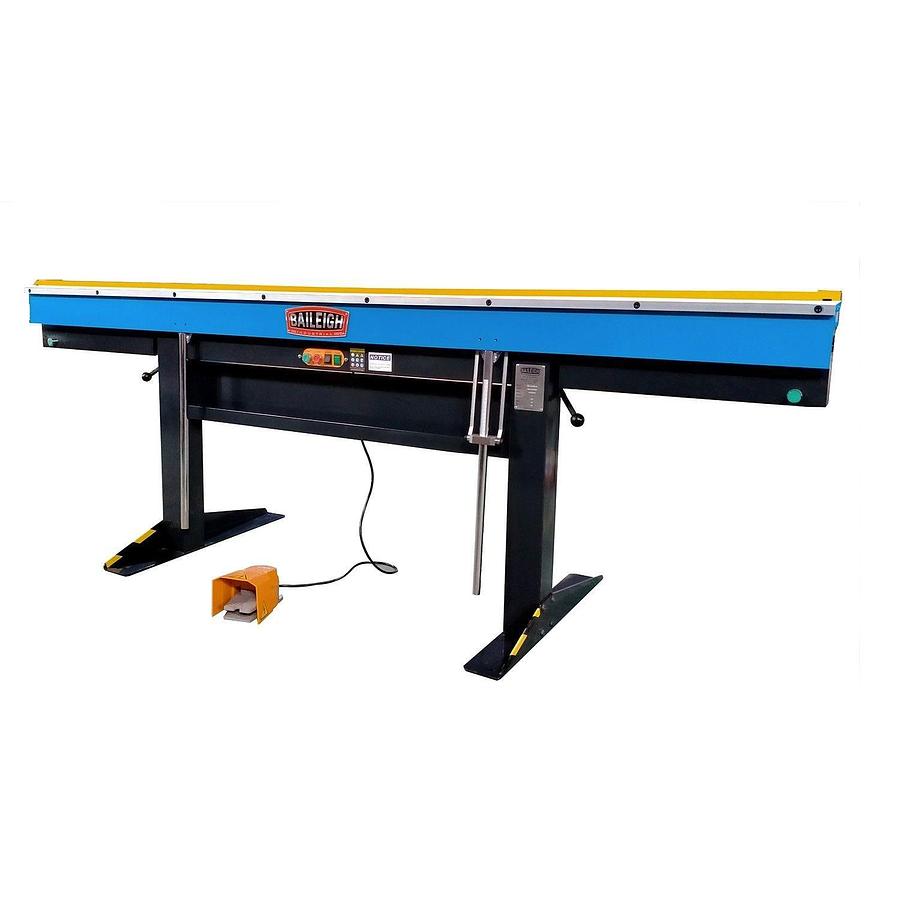

Magnetic Sheet Metal Brake BB-9616M-V2 -

or
Call (954)444-4004

Description

  • Bend length 8 ft.
  • Box Depth Unlimited
  • Clamping Force 6 Tons
  • 220V, 1ph, 60hz, 15A

    • An industry breakthrough, this electromagnetic box and pan brake lets you make fully-enclosed ducts—impossible on a traditional box brake.
    Recommended for:
    HVAC shops, industrial art shops, and general sheet metal fabrication shops.
    Making ductwork, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more.
    *****IMPORTANT INFORMATION!*******

  • Same open-ended design as our BB-4816M, but with twice the length (4 feet more)!
  • Bending length of 8 feet (96”).
  • 16 gauge mild steel maximum capacity
  • Maximum bend angle of 180°.
  • Industrial-strength magnet clamps the material between the work surface and the bending “clamp bar” or finger.
  • Requires 220-volt single-phase power for the magnet.
  • This electromagnetic sheet metal brake can bend boxes or pans to almost any depth, since it isn't reliant on conventional finger depths.
  • Baileigh covers this magnetic sheet metal brake with a 1-year parts warranty.
  • We keep most replacement parts in stock for speedy deliveries.
  • Includes lifetime technical support by phone. Whenever you need troubleshooting or project advice, you can call a knowledgeable Baileigh rep.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBB-9616M-V2
    ConditionNew
    Stock NumberBA9-1231891
    Bending Length Capacity (In.)96
    Mild Steel Capacity (Gauge)16.0000
    Prop 65Cancer and Reproductive Harm
    Style (Type)Magnetic Sheet Metal Brake
    Warranty1 Year
    Gross Weight2755.4
    Net weight2755.4
    Shipping Dimensions (L x W x H) (In.)109x45x21
    Capacity (Stainless Steel)20 ga
    Input Power220V / 1-phase
    Max. Bend (Deg.)180
    Shipping Weight (Lbs.)692
