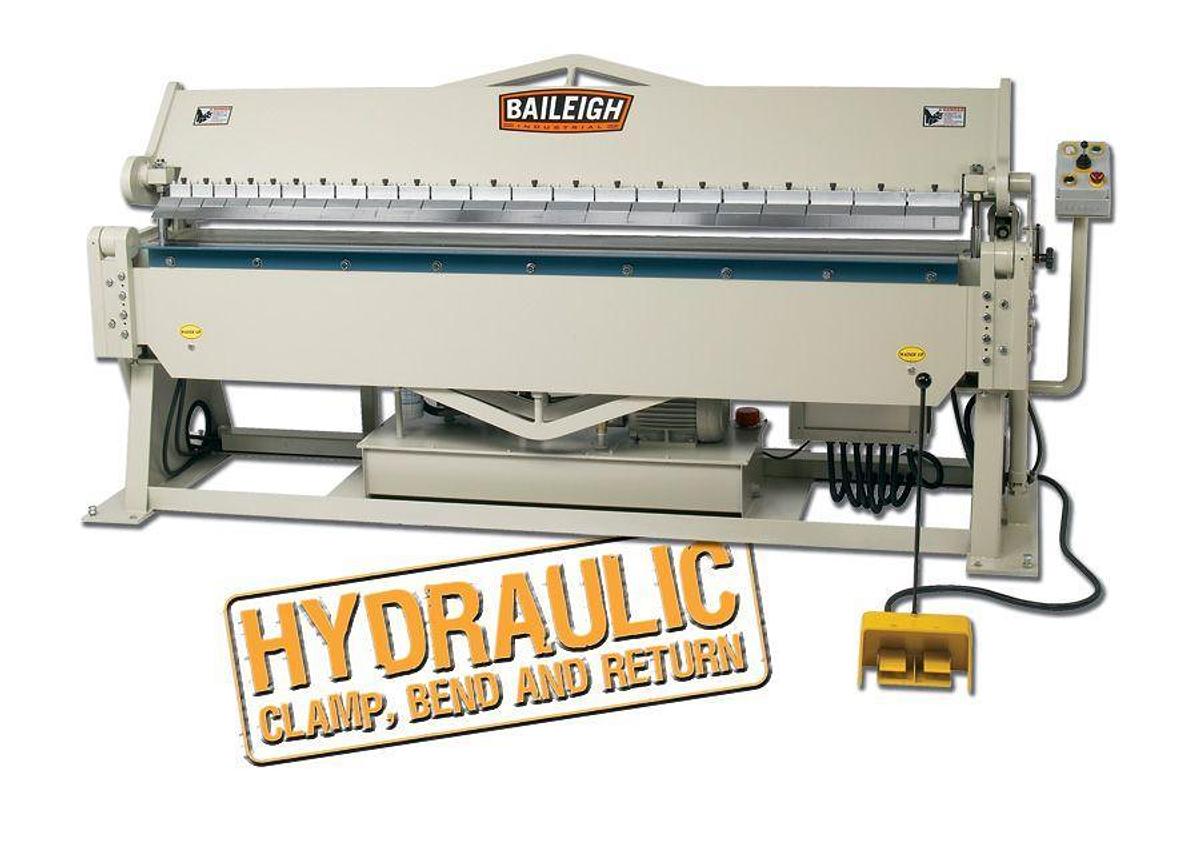

Hydraulic Box and Pan Brake - (BB-9612H)

or
Call (954)444-4004

Description

  • 220V 3-phase box brake
  • 12 gauge mild steel capacity
  • 8-foot length
  • Includes 22 Fingers from 3" to 6"

    • Supported by a fully-welded steel frame, the BB-9612H Hydraulic Box and Pan Brake can bend 12-gauge mild steel (or lighter) across its full 8-foot (96”) width.

  • 135° maximum bend angle
  • Comes standard with 22 fingers (6 fingers of 3”, 4 of 4”, 10 of 5”, and 2 of 6”) that you can adjust to make different sizes of boxes and pans
  • Powerful industrial-grade hydraulics lift the leaf and lift or clamp the beam
  • You can run this hydraulic sheet metal brake in manual or semi-automatic mode via toggle or foot pedal controls
  • Adjustable bend auto-stop, for easy and exact repeatability, makes this a very production-oriented hydraulic sheet metal brake
  • Apron angle bar detaches to let you get closer between bends
  • Electro-welded beam and leaf, stabilized with truss rods, minimizes deflection when you’re bending at full capacity and keeps bends crisp and accurate

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBB-9612H
    ConditionNew
    Stock NumberBA9-1021004
    Beam Adjustment (Front to Rear) (In.)1"
    Maximum Box Depth (In.)6"
    Mild Steel Capacity (Gauge)12.0000
    Prop 65Cancer and Reproductive Harm
    Style (Type)Hydraulic Box and Pan Brake
    Warranty1 Year
    Gross Weight4060.0
    Net weight4060.0
    Shipping Dimensions (L x W x H) (In.)136x46x68
    Input Power220V / 3-phase
    Max. Bend (Deg.)0 – 135°
    Motor (HP)3.0 hp
    Overall Length (In.)96”
