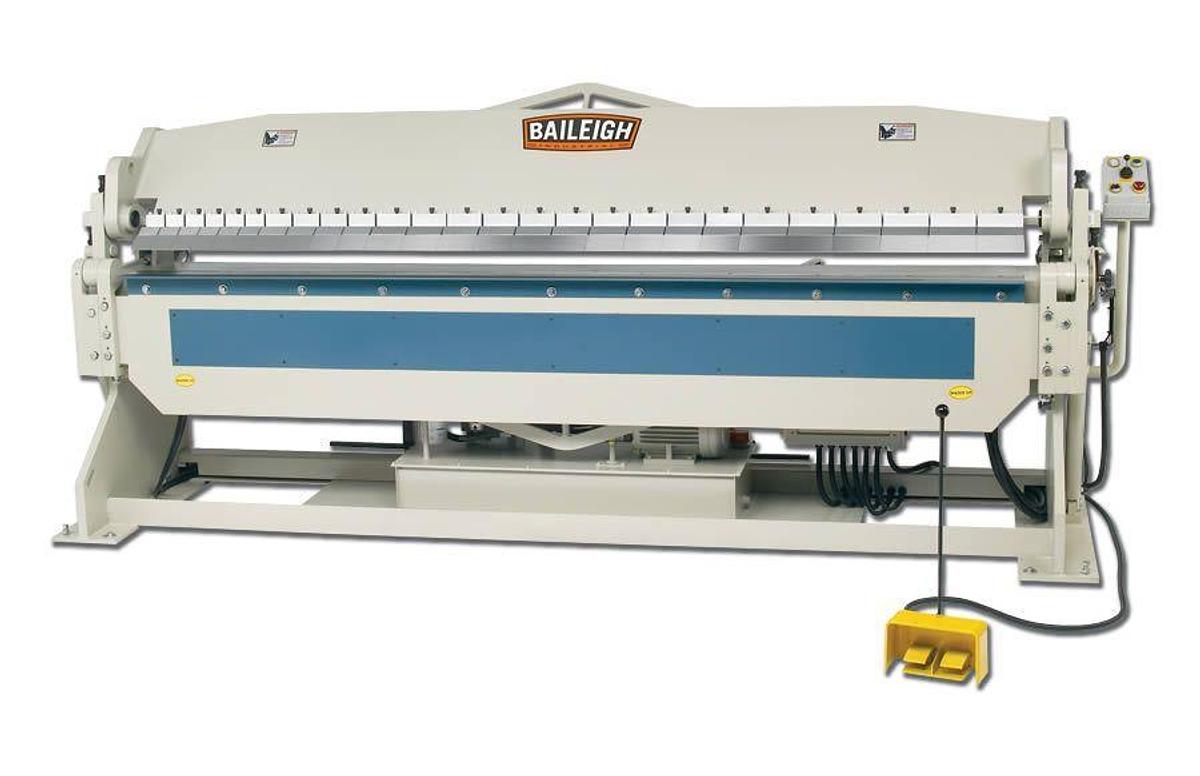

Hydraulic Sheet Metal Brake - (BB-12010H)

or
Call (954)444-4004

Description

  • 220V 3-phase hydraulic box and pan brake
  • 10 gauge mild steel capacity
  • 10-foot length
  • Includes 26 fingers from 3" to 6"

    • This Hydraulic Box and Pan Brake will offer years of profitable service in any production shop. A fully-welded steel plate frame ensures accuracy when bending heavy gauges.
    *Bends 10-gauge mild steel and 12-gauge stainless steel or lighter.
    *10 feet (120”) bending length.
    *Maximum bend angle of 135°.
    Industrial-grade hydraulic system does all the following:
    *Clamps the material at the fingers,
    *Lifts the bend leaf to the pre-set bend angle,
    *Opens the beam when the bend is complete.

  • Hydraulically driven bend leaf with a 5 hp motor runs on 220-volt three-phase power with an extra-rigid base design that supports the weight of heavier materials
  • Made using only the most durable and high-quality electrical components
  • Includes 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6") - adjust them for different box and pan applications
  • Adjustable auto-stop: just dial in the bend degree when using the hydraulic bending brake in manual or semi-automatic mode
  • Variable bend speed and clamping pressure adjustment give you control over the material
  • You can operate the machine by toggle from the console, or by using the foot pedal controls
  • Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs
  • Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them
  • Greaseable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years
  • Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBB-12010H
    ConditionNew
    Stock NumberBA9-1020998
    Beam Adjustment (Front to Rear) (In.)1"
    Bending Length Capacity (In.)120
    Maximum Box Depth (In.)6"
    Mild Steel Capacity (Gauge)10.0000
    Prop 65Cancer and Reproductive Harm
    Style (Type)Hydraulic Sheet Metal Brake
    Warranty1 Year
    Gross Weight7700.0
    Net weight7700.0
    Shipping Dimensions (L x W x H) (In.)158x44x70
    Input Power220V / 3-phase
    Max. Bend (Deg.)0 – 135°
    Motor (HP)5 hp
