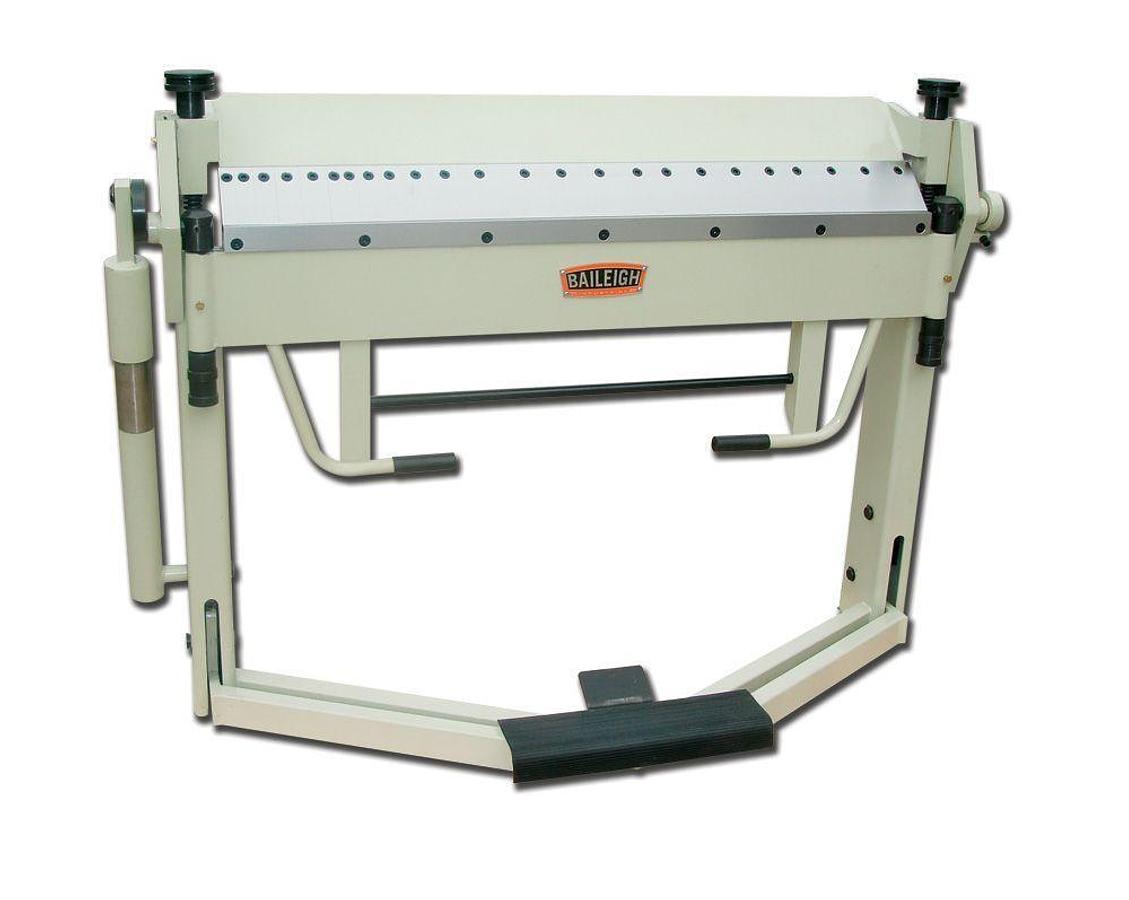

Sheet Metal Finger Brake - (BB-4012F)

or
Call (954)444-4004

Description

  • Manual box brake
  • 12 gauge mild steel capacity
  • 40" length
  • Includes foot pedal for clamping

    • The BB-4012F Baileigh Box and Pan Brake frees up your hands to position the material by letting you clamp the sheet metal with a convenient foot control.


  • This Baileigh sheet metal brake bends up to 12-gauge mild steel across its full 40” length
  • Stop rod lets you make repeatable bends with ease for production runs
  • Hardened bending die ensures years of high-quality results
  • Simple blade gap adjustment helps you correctly bend various gauges of sheet metal
  • Spring-loaded cylinder assists in lifting the apron, especially helpful when you’re bending at full capacity
  • Foot-controlled clamp leaves your hands free to position the sheet metal before clamping in place
  • Comes standard with hardened fingers in an assortment of widths to create many sizes of tanks, pans, boxes, and more
  • Built from the best possible components with a full-welded heavy steel framework to minimize flex and deformation

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBB-4012F
    ConditionNew
    Stock NumberBA9-1000399
    Max. Clamping Bar Lift1.8500
    Maximum Box Depth (In.)2.5"
    Mild Steel Capacity (Gauge)12.0000
    Prop 65Cancer and Reproductive Harm
    Style (Type)Sheet Metal Finger Brake
    Warranty1 Year
    Gross Weight810.0
    Net weight810.0
    Shipping Dimensions (L x W x H) (In.)58x25x52
    Input PowerManual
    Max. Bend (Deg.)0 – 135°
    Overall Length (In.)40”
