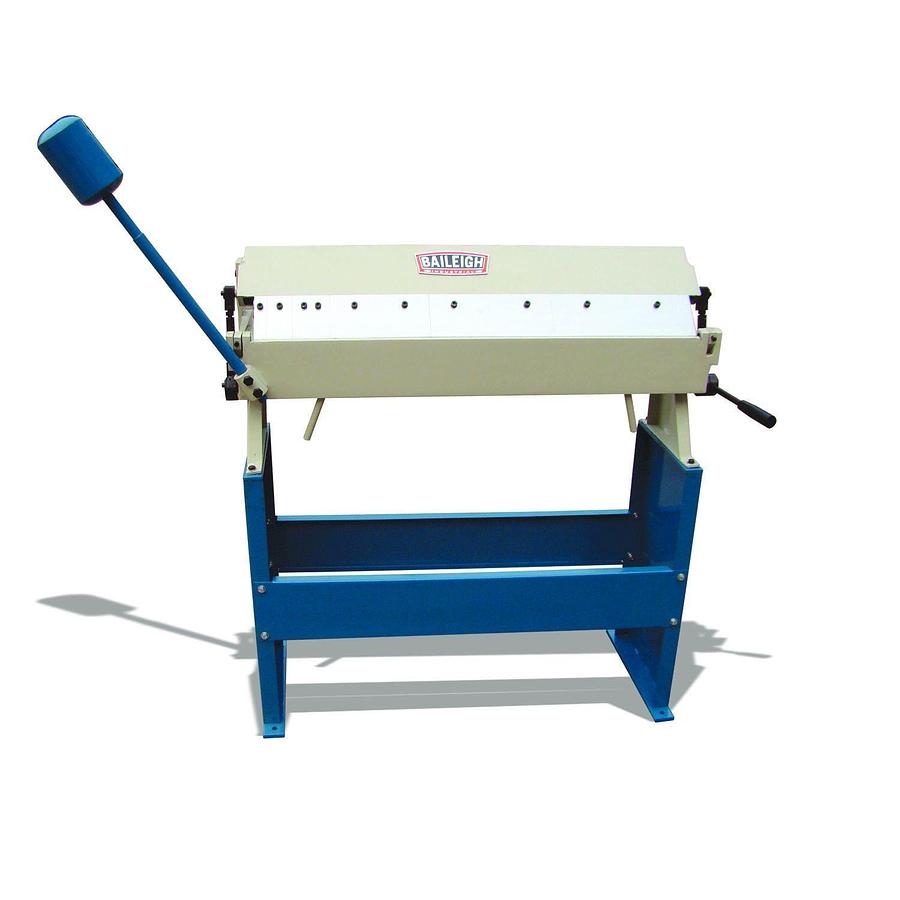

Finger Brake - (BB-3616E)

or
Call (954)444-4004

Description

  • Manual box brake
  • 16 gauge mild steel capacity
  • 3-foot length
  • Includes 6 fingers

    • Built to the highest standards with a plate steel framework, this small Box Brake offers delicate control over your application.


  • 36” box brake has a maximum capacity of 16-gauge mild steel
  • Bends up to 135°
  • Includes an assortment of 6 fingers to make various depths and sizes of boxes and pans
  • Rugged plate steel construction and electro-welded framework ensure crisp bend angles even in the middle of the beam at full capacity
  • Heavy counterweight to assist in lifting the apron—especially handy when bending at full capacity
  • Finger gap adjustment on the right and left of the bend brake allows for different gauges of material
  • Recommended for: Projects involving short pieces of material that larger metal brakes can’t easily handle

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBB-3616E
    ConditionNew
    Stock NumberBA9-1000386
    Maximum Box Depth (In.)1.375"
    Mild Steel Capacity (Gauge)16.0000
    Prop 65Cancer and Reproductive Harm
    Style (Type)Finger Brake
    Warranty1 Year
    Gross Weight280.0
    Net weight280.0
    Shipping Dimensions (L x W x H) (In.)45x20x24
    Input PowerManual
    Max. Bend (Deg.)0 – 135°
    Overall Length (In.)36”
