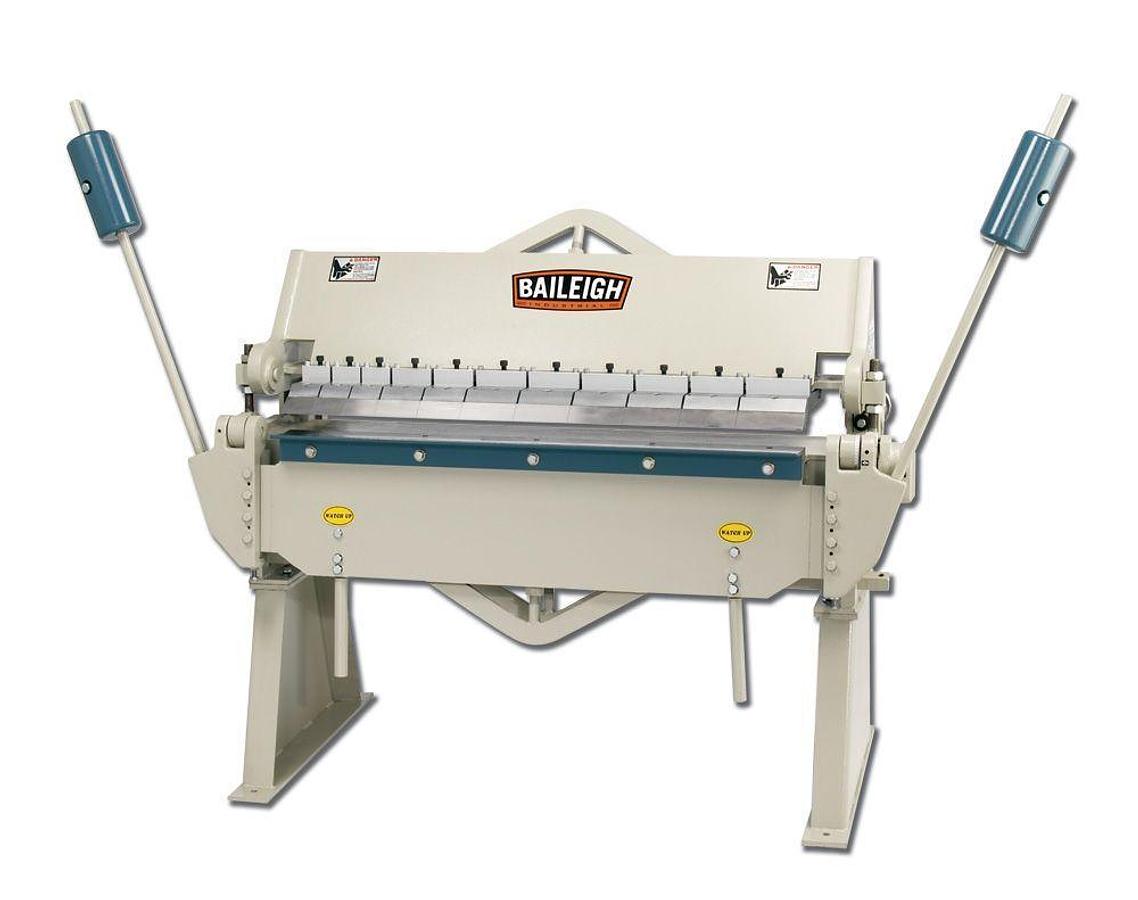

Finger Brake - (BB-4812)

or
Call (954)444-4004

Description

  • Manual box and pan brake
  • 12 gauge mild steel capacity
  • 4-foot length
  • Includes 11 fingers from 3" to 6"

    • Built to offer years of service, the BB-4812 manual sheet metal bender is one of the most powerful manual Finger Breaks on the market. With its thick steel plate construction, this small metal brake weighs just under 2000 lbs.
    Recommended for: Any type of metal fabrication shop looking for a small metal brake.

  • Bends 12 gauge (or lighter) mild steel
  • 4 feet (48”) long with a maximum bend angle of 135°
  • Compact size makes a great fit for tight floor plans
  • Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3”, 2 at 4”, 5 at 5”,1 at 6”). You can make many different box sizes
  • Up to 6” box depth, made possible by 3-piece design, is one of the largest available
  • 2 handwheels adjust the gap for varying material thickness
  • Comes standard with a stop rod system to help you make repeatable bends and simplify production runs
  • Heavy counterweights assist you with bending thick sheet metal—a relief for operators who frequently use the box brake for long periods of time
  • Massive torsion system, connected to the steel beam and leaf, keeps the beam from twisting at maximum capacity
  • Electro-welded steel framework, supported by solid steel adjustable trusses, prevents flexing, and maintains accuracy

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBB-4812
    ConditionNew
    Stock NumberBA9-1000404
    Beam Adjustment (Front to Rear) (In.)1"
    Maximum Box Depth (In.)6"
    Mild Steel Capacity (Gauge)12.0000
    Prop 65Cancer and Reproductive Harm
    Style (Type)Finger Brake
    Warranty1 Year
    Gross Weight1695.0
    Net weight1695.0
    Shipping Dimensions (L x W x H) (In.)70x32x42
    Input PowerManual
    Max. Bend (Deg.)0 – 135°
    Overall Length (In.)48”
