Finger Brake - (BB-5014F)

or
Call (954)444-4004

Description

  • Manual box brake
  • 14 gauge mild steel capacity
  • 50" length
  • Includes foot pedal for clamping

    • This Box Brake lets you clamp sheet metal with a foot pedal, so both hands are free to position the material.

  • Bends a maximum capacity of 14-gauge mild steel across the brake’s full 50” length
  • Adjustable stop rod makes it easy to produce repeatable bends
  • Knobs at each end of the brake let you fine tune the clamping pressure to fit your application

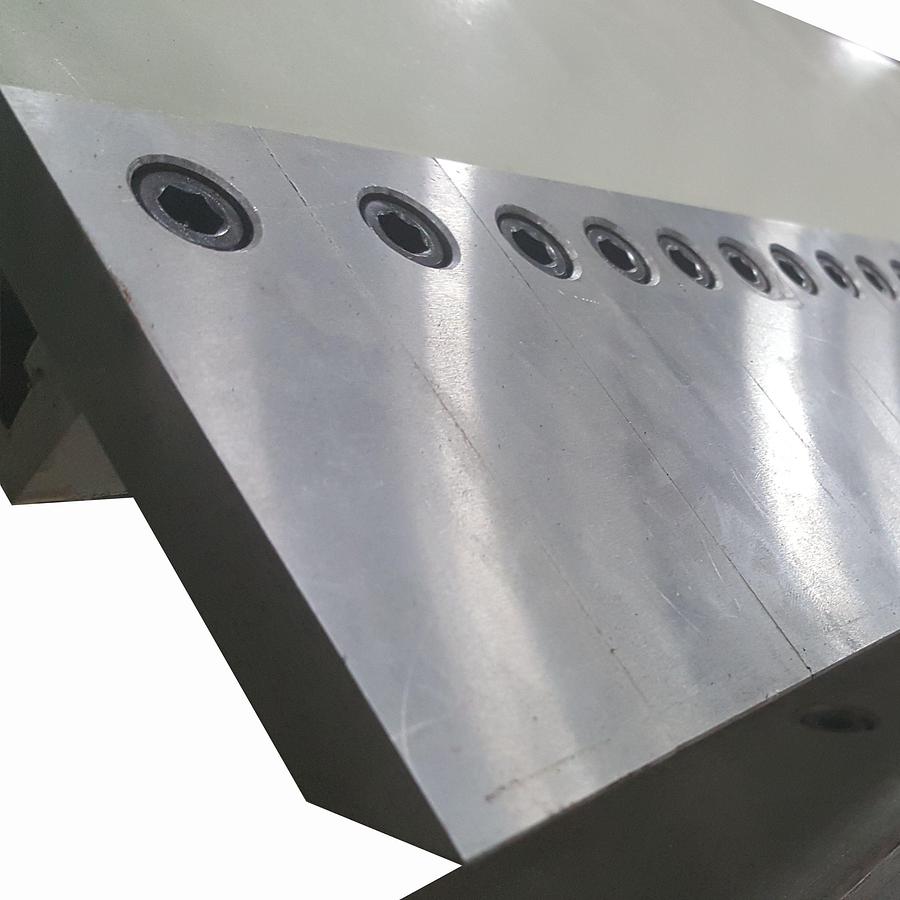

  • Includes 12 fingers of varying widths that you can easily rearrange to create different sizes of tanks, pans, boxes and more
  • Spring-loaded cylinder assists in lifting the apron, which you’ll find particularly useful when bending at full capacity
  • Blade gap adjustment enables you to take on various gauges of sheet metal
  • Made with a fully welded steel framework to maintain accuracy and reduce deformation

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBB-5014F
    ConditionNew
    Stock NumberBA9-1000529
    Maximum Box Depth (In.)2.5"
    Mild Steel Capacity (Gauge)14.0000
    Prop 65Cancer and Reproductive Harm
    Style (Type)Finger Brake
    Warranty1 Year
    Gross Weight915.0
    Net weight915.0
    Shipping Dimensions (L x W x H) (In.)68x28x52
    Input PowerManual
    Max. Bend (Deg.)0 – 135°
    Overall Length (In.)50”
