12" Universal Bend Plate | UBP-1200-325

or
Call (954)444-4004

Description

  • 12" Universal Bend Die Plate
  • for RDB-325
  • Includes 0.75" IR bend pin

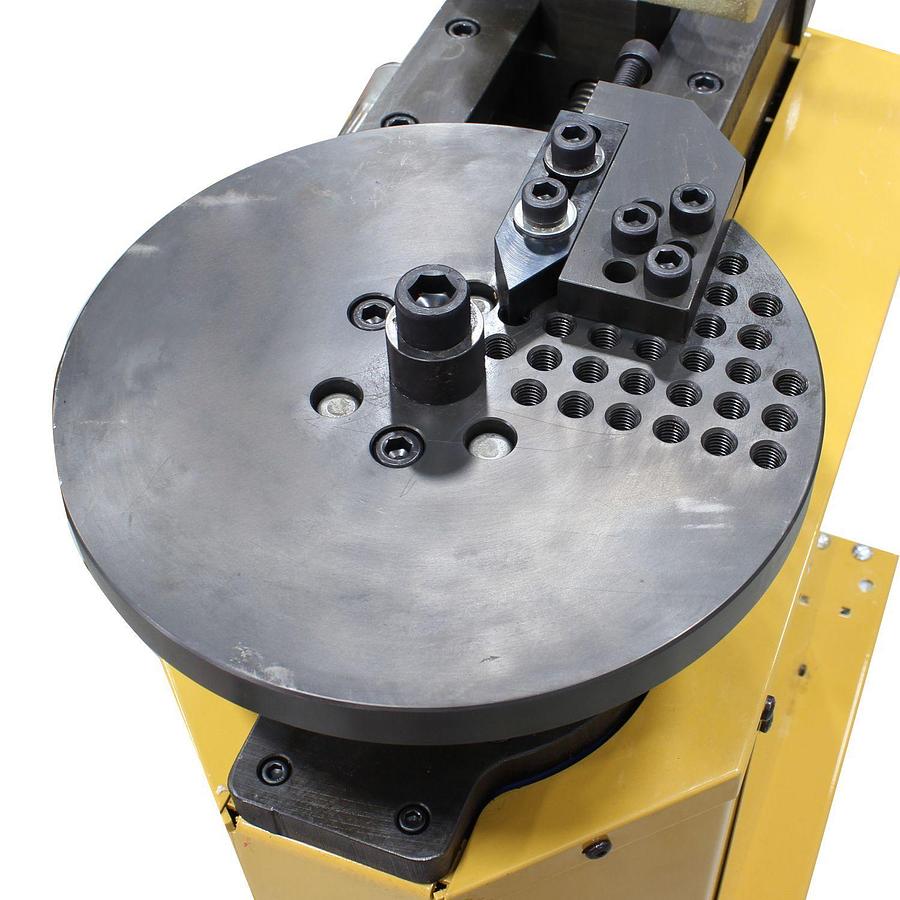

    • The 12" Universal Die Plate for RDB-325 allows the fabricator to bend solid bar or rounds to into very tight radii. The UPB-1200 universal bend plate is made from solid steel for long life and comes with the plate that gets bolted to the drive plate on the universal bender. It comes with a round center die, removable pin for start and stop of bend, as well as the roller counter die assembly.  With multiple holes drilled and tapped throughout the plate the fabricator has endless capabilities on one simple tooling set.


  • Compatible with RDB-325 Baileigh machine
  • Made in the USA

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelUBP-1200-325
    ConditionNew
    Stock NumberBA9-UBPM325
    Center Line RadiusDepends on Application
    Max Bend (Degrees)360.0000
    Prop 65Cancer and Reproductive Harm
    WarrantyNo value
    Gross Weight52.0
    Net weight52.0
    Material Dimension (In.)12" OD
