Description

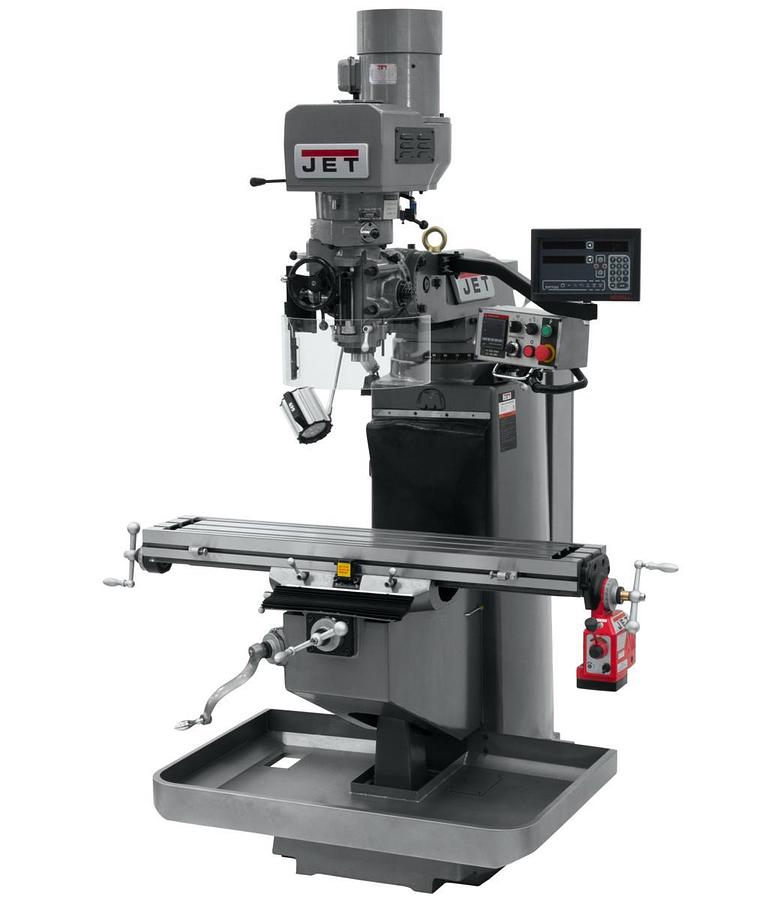

JTM-949EVS Mill With 3-Axis Newall DP700 DRO (Knee) With X-Axis Powerfeed

Constructed using the Certified Meehanite® casting process, The JTM-949EVS, 9" x 49" Electronic Variable Speed Milling Machines provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design. These new Mills have features you've come to expect and is backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.


  • Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Dual locks on all moveable surfaces
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • Swing away safety shield
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

    • Show All

    Specifications

    ManufacturerJettools
    ModelJTM-949EVS/230
    ConditionNew
    Stock NumberJT9-690540
    Collet Capacity1/8 - 7/8
    Column Width (In.)18
    Distance Spindle to Column (Max.) (In.)18-1/8
    Inverter TypeDelta, B
    Max Distance Spindle to Table (In.)20-3/4
    Motor (HP)3HP, 230V, 3Ph
    Number of Axis3 (Knee)
    Overall Dimensions (L x W x H) (In.)67 x 64 x 86
    PowerfeedX-Axis
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3-3/8
    Quill Down Feed Rates (IPR).0015 - .003 - .006
    Range of Spindle Speeds (RPM)60 - 4,500
    Saddle Width (In.)11-1/2
    Spindle Taper (In. x TPI)R-8
    Spindle Travel (In.)5
    Style (Type)EVS
    T-Slot Centers (In.)2-1/2
    Table Cross Travel (In.)12-5/8
    Table Longitudinal Travel (In.)36
    Table Longitudinal Travel With Powerfeed (In.)30-3/4
    Table Size (L x W) (In.)9 x 49
    Travel of Knee (In.)15-3/4
    Travel of Ram (In.)15-1/4
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)720
    Gross Weight2420.0
    Net weight2420.0
