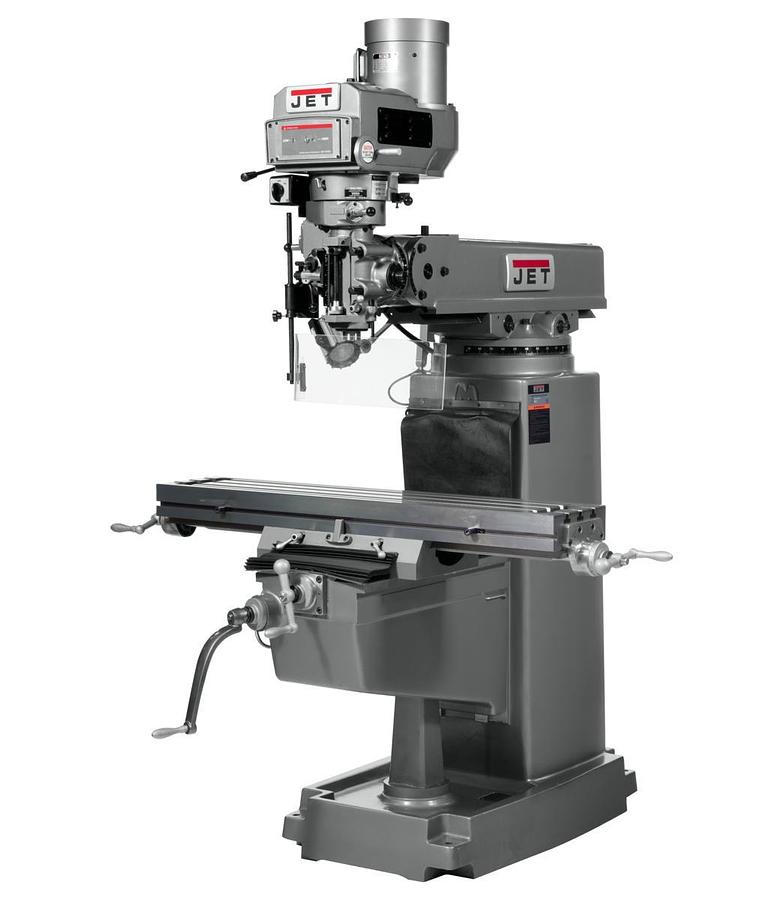

JTM-1050VS2 Variable Speed Mill with LED Worklamp and Spindle Guard, 230/460V, 3Ph

or
Call (954)444-4004

Description

The JET JTM-1050VS2 features our proprietary Meehanite® column castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty


  • Chrome lead screws on X and Y axis
  • Hardened and ground table
  • Hardened and ground table capable of supporting 840 pounds
  • Internal coolant tank built into base for use with optional coolant system (coolant pump not included)
  • JET's proprietary certified Meehanite® column castings
  • One shot lubrication system
  • Precision bored and honed milling head
  • Three stage power downfeed with automatic stop

    • Show All

    Specifications

    ManufacturerJettools
    ModelJTM-1050VS2
    ConditionNew
    Stock NumberJT9-691050
    Collet Capacity1/8 - 5/8
    Column Width (In.)13
    Distance Spindle to Column (Max.) (In.)27
    Motor (HP)3 HP,230/460V ,3Ph
    Overall Dimensions (L x W x H) (In.)63 x 63 x 89
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3-3/8
    Quill Down Feed Rates (IPR).0015 / .003 / .008
    Range of Spindle Speeds (RPM)60-500/500-4200
    Saddle Width (In.)20
    Spindle Taper (In. x TPI)R8
    Spindle Travel (In.)5
    T-Slot Centers (In.)2-1/2
    Table Cross Travel (In.)14-3/4
    Table Longitudinal Travel (In.)34-1/4
    Table Size (L x W) (In.)10 x 50
    Travel of Knee (In.)16-1/8
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)840
    Gross Weight2568.0
    Net weight2466.0
