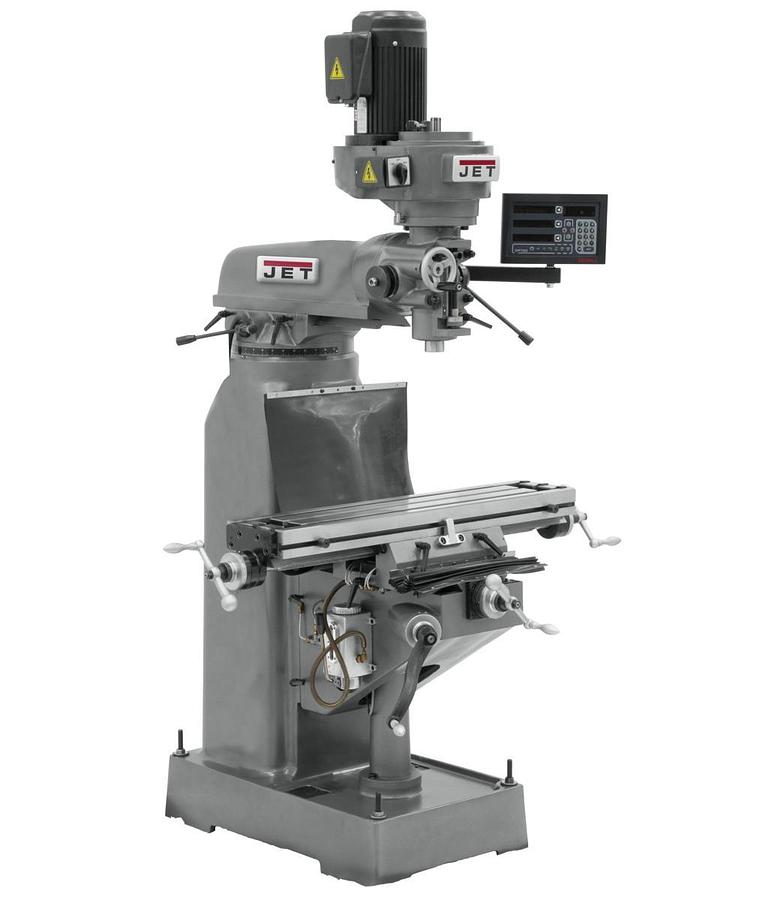

JVM-836-3 Mill With DP700-DRO With X-Axis Powerfeed

or
Call (954)444-4004

Description

JVM-836-3 Mill With DP700-DRO With X-Axis Powerfeed

The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty


  • Graduated scale on column
  • Hardened and ground precision table
  • Head tilts left or right
  • High precision spindle bearings
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision ground dovetail ways

    • Show All

    Specifications

    ManufacturerJettools
    ModelJVM-836-3
    ConditionNew
    Stock NumberJT9-691180
    Collet Capacity1/8 - 7/8
    Distance Spindle to Column (Max.) (In.)15-3/4
    Max Distance Spindle to Table (In.)13-3/4
    Motor (HP)1-1/2 HP, 230V Only, 3Ph
    Number of Axis2
    Number of Spindle Speeds10
    Overall Dimensions (L x W x H) (In.)55 x 52 x 78
    PowerfeedX-Axis
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3-3/8
    Quill Down Feed Rates (IPR).0015 - .003 - .006
    Range of Spindle Speeds (RPM)120 - 1,550
    Spindle Taper (In. x TPI)R-8
    Spindle Travel (In.)5
    Style (Type)Step Pulley R8
    T-Slot Centers (In.)2-1/2
    Table Cross Travel (In.)9-1/2
    Table Longitudinal Travel (In.)22-1/4
    Table Longitudinal Travel With Powerfeed (In.)18
    Table Size (L x W) (In.)7-7/8 x 35-3/4
    Travel of Knee (In.)14
    Travel of Ram (In.)10-1/2
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)500
    Gross Weight1630.0
    Net weight1630.0
