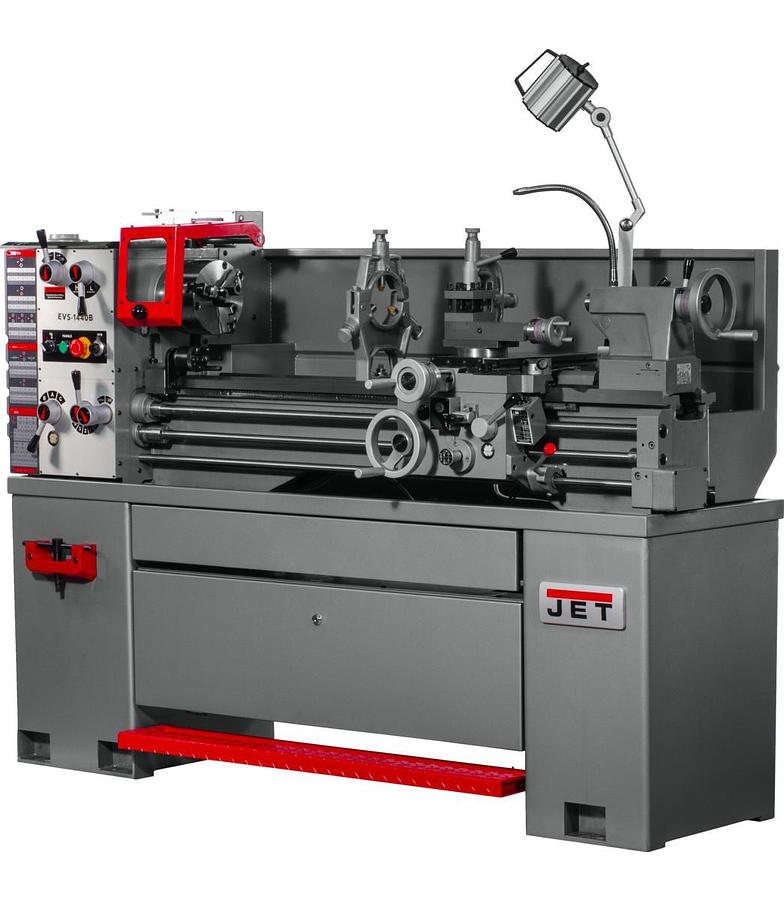

EVS-1440 Electronic Variable Speed lathe with Acu-Rite 203 DRO and Collet Closer, 3HP
Description
EVS-1440 Electronic Variable Speed lathe with Acu-Rite 203 DRO and Collet Closer, 3HP, 230, 3Ph
The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
Specifications
| Manufacturer | Jettools |
| Model | EVS-1440B |
| Condition | New |
| Stock Number | JT9-311446 |
| Compound Slide Travel (In.) | 3-1/2 |
| Cross Slide Travel (In.) | 7 |
| Length of Gap (In.) | 9-1/2 |
| Max Tool Size (In.) | 3/4 x 3/4 |
| Motor (HP) | 3HP, 230V, 3Ph |
| Number of Inch Threads | 34.0000 |
| Number of Longitudinal and Cross Feed Rates | 25 |
| Number of Metric Threads | 34.0000 |
| Overall Dimensions (L x W x H) (In.) | 68.5 x 28.3 x 50 |
| Prop 65 | None |
| Range of Cross Feeds (IPR) | 25 |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Longitudinal Feeds (IPR) | 0.0016-0.0460 |
| Range of Metric Threads | 0.5-12 |
| Range of Spindle Speeds (RPM) | 40-2000 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP) |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 9-1/16 |
| Swing Through Gap (In.) | 19-1/2 |
| Tailstock Spindle Travel (In.) | 6-1/8 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7.48 |
| Gross Weight | 1584.0 |
| Net weight | 1320.0 |
